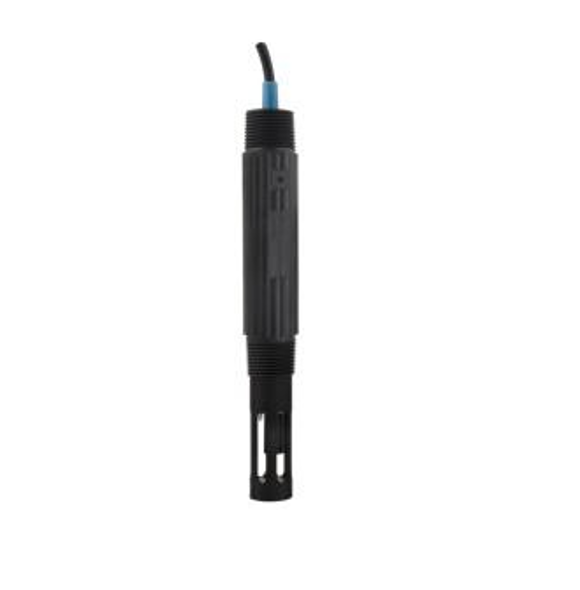

Daruifuno DEC790-P Digital Conductivity Sensors (0~10mS/cm, 5m, RS485, for DUC2-EC series)

Measuring Range: Conductivity: 0~10mS/cm; TDS: 0~5g/L; Salinity: 5ppt(‰);Temp:0~50℃

Resolution: Conductivity: 0.01uS/cm; TDS: 0.01mg/L;Salinity:0.01%; Temp: 0.1℃

Accuracy: ±1.0% FS

Communication: RS485 MODBUS-RTU

Temp Unit: Automatic Tempcompensation

ResponseTime: T90＜15s

Calibration Method: Multi-point calibration of standard solutions; Contrast Offset; Factor offset

Work Pressure: ≤6Bar

Sample Flow Rate: Not dependent

Operating Temp： 0~50℃ (does not freeze)

StorageTemp: -10~60℃ (does not freeze)

Dimension Diameter: 35mm Length: 240 mm (protective claw included)

Mounting Thread: 1 inch NPT at both ends; Immersedor piped installation

Lead interface: One-piece or split M16 connector

Protection Grade:IP68

Power Supply: 9~24VDC

Power Consumption: 0.2W

Weight: 220g

Cable Standard: 5 meters (other length can be customized)
