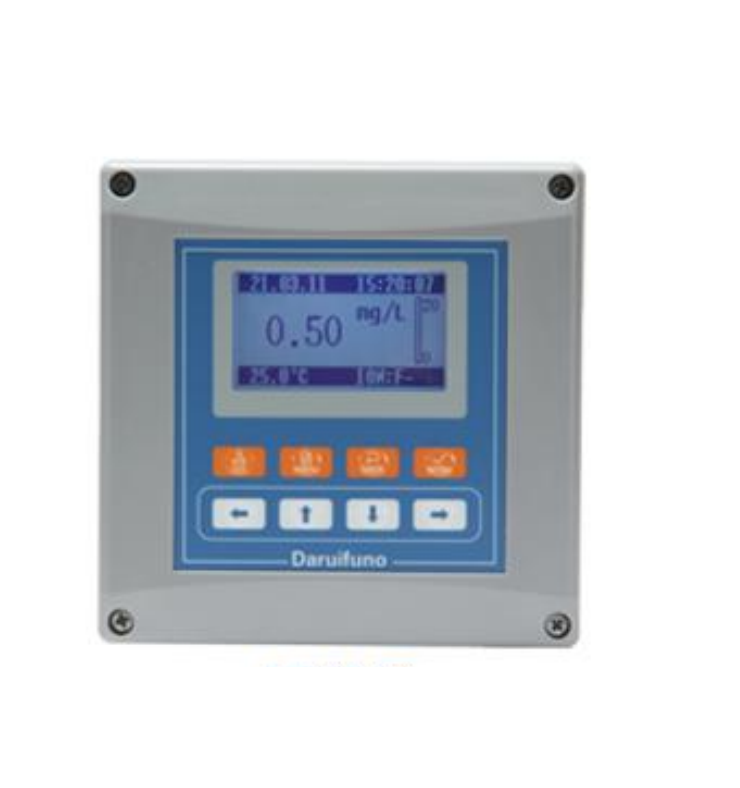

Daruifuno APIS2-F3D Online IONS (ion type) Analyzer (±2000mV; -10～150℃)

Software version: DRFN ion electrode Analysis software V1.

Measuring object:

- Ion concentration: Fluorine (chlorine, copper, bromine......)

- MV: ±2000mV

- TEMP: -10～150℃ /14~302

Resolution:

- Ion concentration: Related to ion electrode

- MV: 1mV

- TEMP: 0.1℃/0.1℉

Compensation: Channel Scalable

Relay control: 2 settable SPST relays with a max. load of 3A/250VAC

Accuracy: 3% of the measuring range

Stability: 1% of the measuring range every 24 hours, no accumulation

Repeatability: 1% better than the measuring range

Analog current output: Two settable 0/4~20mA current loop output, max. load 1000Ω

Communication method: Two-wire RS485 interface;MODBUS RTU;support JSON text data format

Display screen: 128*64 LCD, adjustable backlight mode, adjustable display rate

Language: Chinese and English

Configuration information: Power off protection, parameters are retained indefinitel

Time history/data rec: Year/month/day/hour/min/second record 14000 historical data set interval between 1~999mins

Maintenance records: Last 100 time

Operating environment: 0～60℃，RH<95%( no condensation)

Storage environment: -20～70℃，RH<55% ( no condensation)

Shell material: Enhanced ABS

Protection Grade: IP66

Dimension: 144*144*120 mm

Mounting method: Wall mount, pipe clamping, panel

Hole Size: 138*138mm

Electrical interface: The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm

Power supply: 18~36V DC

Power consumption: About 7W

Weight : About 800g
