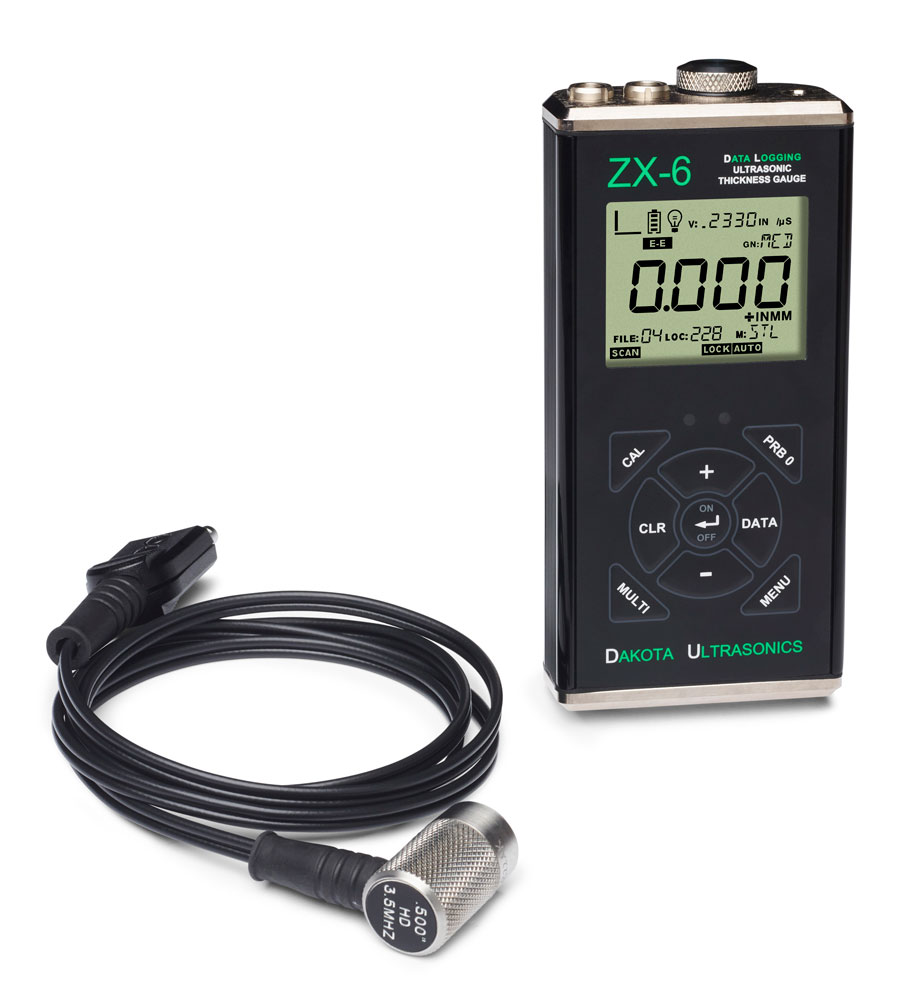

Dakota ZX-6DL Ultrasonic Thickness Gauge (P-E/E-E, 0.63 ~ 914.4 mm, USB-C, data logger)

Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.

Resolution: 0.001 inches (0.01 millimeters)

Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)

Units: English & Metric

Zero : Manual or auto zero option.

High Speed Scan: Display the lowest reading found during a scan. Scan speed at 100Hz.

Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Nine tactile-feedback keys.

Size:

Width (2.5 in / 63.5 mm)

Height (5.17 in / 131.3 mm)

Depth (1.24 in / 31.5 mm)

Weight: 11 ounces (with batteries).

Operating Temperature: -22 to 167F (-30 to 75C).

Two 1.5V alkaline, or 1.2V NiCad (Option) or 1.5V Lithium AA cells (option)

Typically operates for 45 hours on alkaline and 23 hours on NiCad.

Data

Sequential data storage, 40 files of 250

readings per file, for 10,000 readings

(ZX-5 DL)

Software

Comes complete with USB download cable (ZX-5 DL)

Differential Mode:

Display the +/- difference from a nominal value entered

Alarm Mode:

High & low alarm limits with audible and visual indicatiors

VX velocity:

Measure in terms of velocity for nodularity testing
