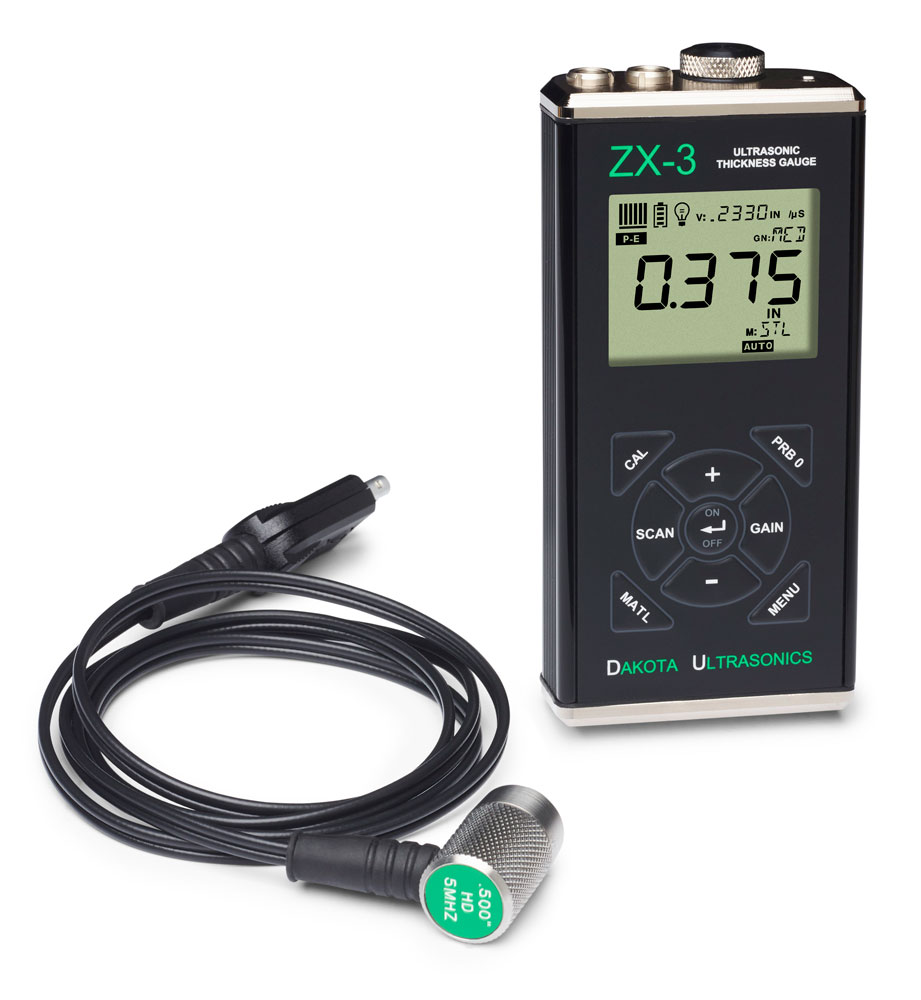

Dakota ZX-3 Ultrasonic Thickness Gauge (0.63 - 914.4 mm)

Warranty : 12 months with units, 3 months with probe

Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.

Resolution: 0.001 inches (0.01 millimeters)

Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)

Units: English & Metric

Zero : Manual or auto zero option.

High Speed Scan: Display the lowest reading found during a scan. Scan speed at 100Hz.

Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Nine tactile-feedback keys.

Size:

Width (2.5 in / 63.5 mm)

Height (5.17 in / 131.3 mm)

Depth (1.24 in / 31.5 mm)

Weight: 11 ounces (with batteries).

Operating Temperature: -22 to 167F (-30 to 75C).

Two 1.5V alkaline, or 1.2V NiCad (Option) or 1.5V Lithium AA cells (option)

Typically operates for 45 hours on alkaline and 23 hours on NiCad.

Low battery indicator on display. Auto shut-off after 5 minutes of inactivity.

DATASHEET

Probe
