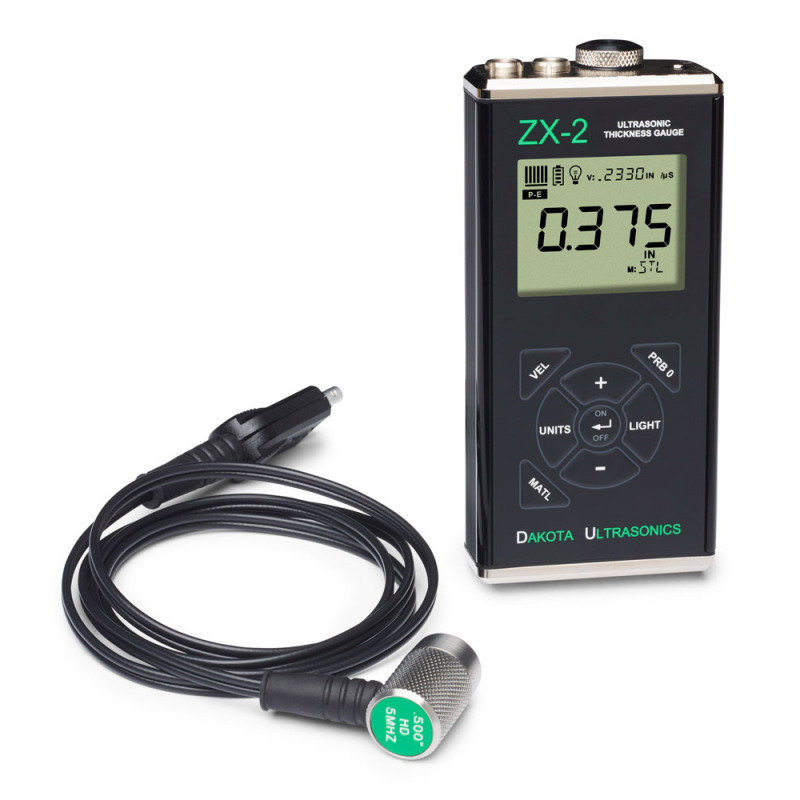

Dakota ZX-2 Ultrasonic thickness gauge (0.63 ~914.4 mm, 0.01mm, velocity preset)

Range: Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.

Units: English & Metric

Resolution: 0.001 inches (0.01 millimeters)

Velocity Range: 0.0120 to .7300 in/μs (305 to 18,542 m/sec)

PRF: 200Hz

Display Update Rate: 10Hz

Power source

Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells

Weight: 11 ounces (with batteries).

Size: Width (2.5 in / 63.5 mm)

Height (5.17 in / 131.3 mm)

Depth (1.24 in / 31.5 mm)

Operating Temperature: -22 to 167F (-30 to 75C).

Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Velocity range setting

ZX-2 adjustable on keypad and selectable from 8 factory presets and 2 programmable custom velocity options.
