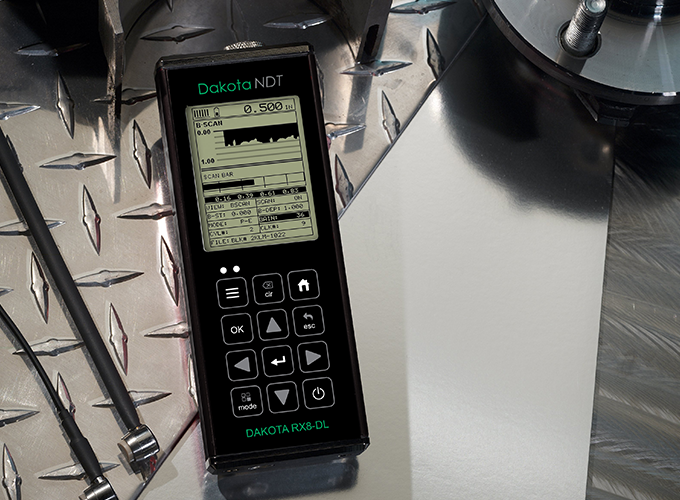

Dakota RX8-DL Sonic Tester (PE: 0.63 - 914.4mm)

Measurement Range:

PE: 0.63 - 914.4mm (0.025 - 36")

EE: 2.54 - 101.6mm (0.100 - 4.0”)

Resolution: 0.01mm (0.001”)

Velocity Range: 305 - 18542m/s (0.0120 - 0.7300in/μs)

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 3 x AA batteries and via USB

Battery Life: Alkaline – 35 hrs; Nicad – 10 hrs and NI-MH – 35 hrs

Gauge Weight: 383g (13.5oz) - including batteries

Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)

Packing List: Unit; Standard Transducer; Couplant; Manual; Plastic Carrying Case and AA Batteries. PC Engine Mapping Software and Transfer Cable

Datasheet
