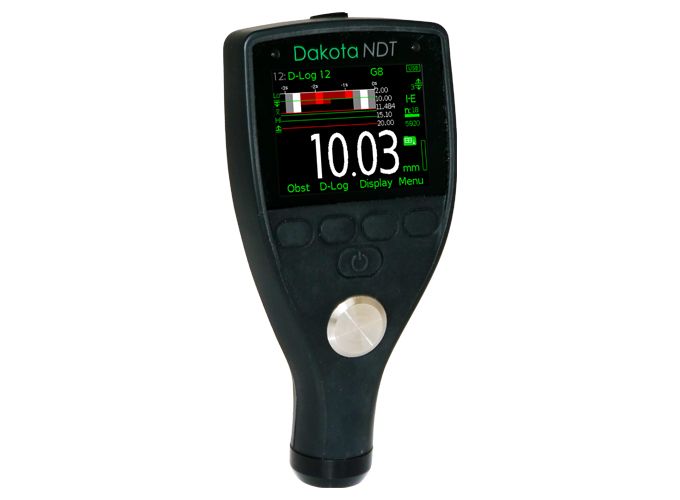

Dakota PCX8-DL Precision Thickness Gauge (IE:1.65 - 25.40mm; EE: 0.15 - 10.15mm)

Measurement Range

Interface Echo (IE): 1.65 - 25.40mm (0.065 - 1.00”)

Echo Echo (EE): 0.15 - 10.15mm (0.006 - 0.400”)

Plastic Mode (PLAS): 0.15 - 5.00mm (0.006 - 0.197”)

Measurement Accuracy

Interface Echo (IE): ±0.015mm (1.65-2.99mm); ±0.5%(3.00-25.4mm)

Plastic Mode (PLAS): ±0.015mm (0.15-2.99mm); ±0.5% (3.00-5.00mm)

Operating Temperature: -10 to 50°C (14 to 122°F)

Power Supply: 2 x AA batteries

Battery Life: Alkaline: 15 hours; Lithium: 28 hours

Gauge Weight: 210g (7.4oz) - including batteries; without transducer

Gauge Dimensions: 145 x 73 x 37mm (5.7 x 2.84 x 1.46”); without transducer

Packing List: Dakota PCX8-DL Ultrasonic Precision Thickness Gauge; 15MHz transducer (TXC15M0CM); ultrasonic couplant; 3 x screen protectors; wrist harness; 2 x AA batteries; plastic transit case; calibration certificate; USB cable; DakMaster™ Software; operating instructions
