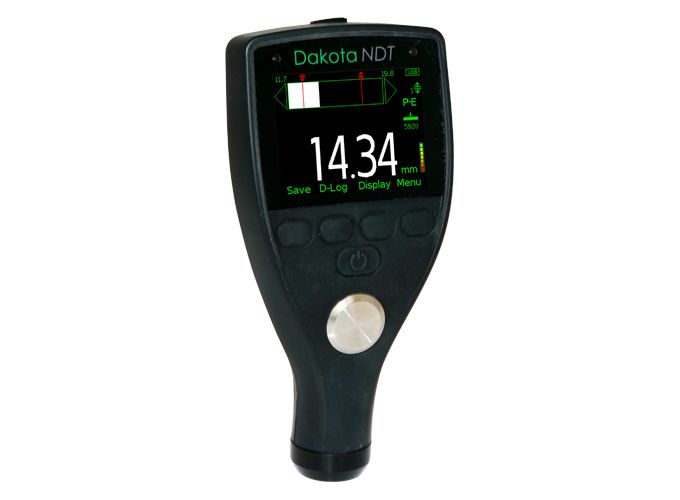

Dakota CX6-DL Material Thickness Gauge (PE: 0.63 - 500mm; EE: 2.54 - 20.00mm; VM: 1250-10000m/s)

Measurement Range1:

Pulse Echo (PE): 0.63 - 500mm (0.025 - 19.999”)

Echo Echo ThruPaint™ (EE): 2.54 - 20.00mm (0.100-0.787”)

Velocity Mode (VM): 1250-10000m/s (0.0492 - 0.3937in/μs)

Measurement Accuracy2

Pulse Echo (PE):

±0.05mm (0.63-9.99mm)

±0.5% (10.00-500.00mm)

±0.004” (0.025-0.393”)

±0.5% (0.394-20.00”)

Echo Echo ThruPaint™ (EE):

±0.05mm (2.54-9.99mm)

±0.5% (10.00-20.00mm)

±0.004” (0.100-0.393”)

±0.5% (0.394-0.787”)

Operating Temperature: -10 to 50°C (14 to 122°F)

Power Supply: 2 x AA batteries

Battery Life3: Alkaline: 15 hours Lithium: 28 hours

Gauge Weight: 210g (7.4oz) - including batteries. without transducer

Gauge Dimensions: 145 x 73 x 37mm (5.7 x 2.84 x 1.46”). without transducer

Packing List: Dakota CX6-DL Ultrasonic Material Thickness Gauge, 5MHz ¼” HD right angle dual element transducer (TXC5M00CP-10), ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, DakMaster® software CD & USB cable
