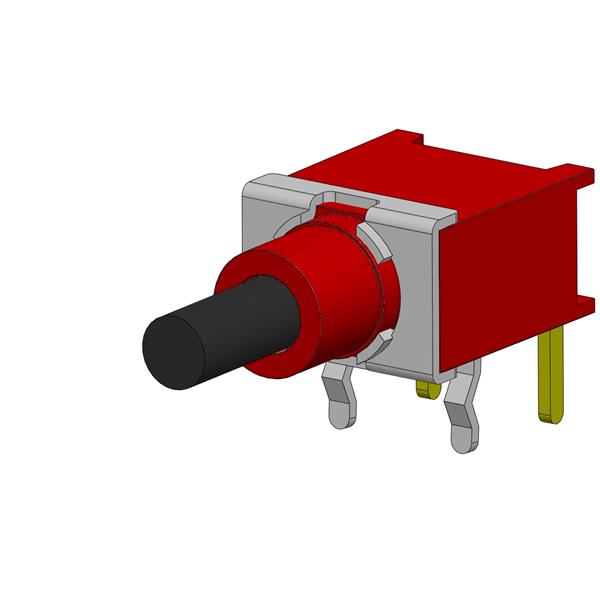

Dailywell 8AS9P1A1M6NRES Subminiature Sealed Sub-miniature Pushbutton SPST switch on-mom right angle pc thru-hole
ManufacturerDailywell(View more products from this manufacturer)
Model8AS9P1A1M6NRES
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 50000 Cycle
Color: Red
Width: 8.13 mm
Length: 14.73 mm
Actuator: Plunger
Material: Nylon
Cap Color: Black
Illuminated: Non-Illuminated
Unit Weight: 1.050 g
Contact Form: SPST
Actuator Style: 5.46 High
Current Rating: 1 A
Mounting Style: Panel Seal, PCB Mount
Contact Plating: Gold
Switch Function: OFF - (ON)
Actuator Material: Thermoplastic Polyester (TPP)
Termination Style: PC Pin, Right Angle
Voltage Rating AC: 250 VAC
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
