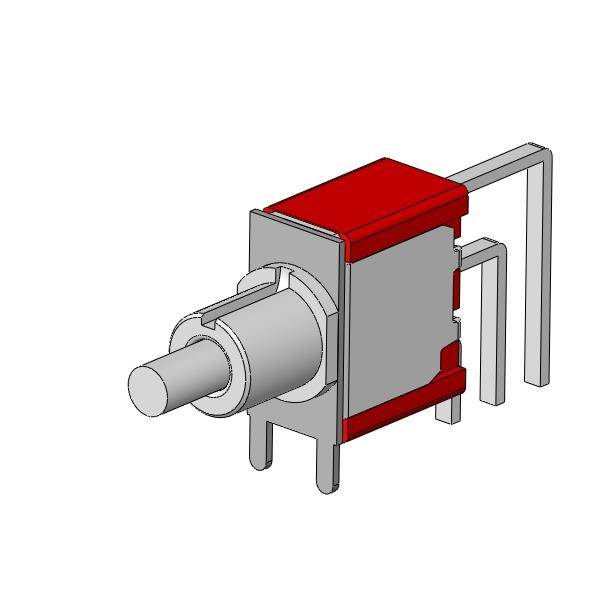

Dailywell 7MS7P1B20M7QES Standard Switches Snap-Acting Pushbutton SPDT switch on-mom vertical right angle pc thru-hole
ManufacturerDailywell(View more products from this manufacturer)
Model7MS7P1B20M7QES
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 50000 Cycle
Color: Red
Width: 6.86 mm
Height: 12.7 mm
Length: 29.66 mm
Actuator: Plunger
Material: Diallyl Phthalate (DAP)
Illuminated: Non-Illuminated
Unit Weight: 4.680 g
Contact Form: SPDT
Actuator Style: Plunger
Current Rating: 100 mA
Mounting Style: Bushing Mount
Contact Plating: Silver
Switch Function: ON - (ON)
Actuator Material: Nylon
Termination Style: PC Pin, Right Angle, Vertical
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
