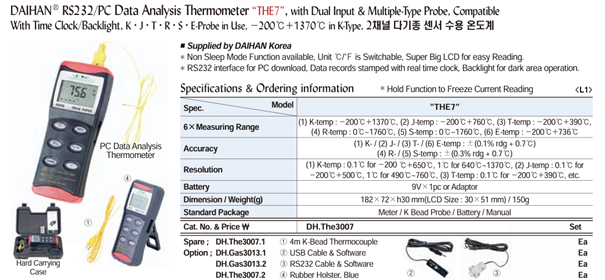

DaiHan THE7 RS232/PC Data Analysis Thermometer

6×Measuring Range:

(1) K-temp : -200℃+1370℃

(2) J-temp : -200℃+760℃

(3) T-temp : -200℃+390℃

(4) R-temp : 0℃~1760℃

(5) S-temp : 0℃~1760℃

(6) E-temp : -200℃+736℃

Accuracy:

(1) K- /

(2) J- /

(3) T- /

(4) R- /

(5) S-temp : ±(0.3% rdg + 0.7℃)

(6) E-temp : ±(0.1% rdg + 0.7℃)

Resolution:

(1) K-temp : 0.1℃ for -200 ℃+650℃; 1℃ for 640℃~1370℃

(2) J-temp : 0.1℃ for -200℃+500℃; 1℃ for 490℃~760℃

(3) T-temp : 0.1℃ for -200℃+390℃; etc.

Battery: 9V×1pc or Adaptor

Dimension / Weight(g): 182×72×h30 mm(LCD Size : 30×51 mm) / 150g

Standard Package: Meter / K Bead Probe / Battery / Manual

Datasheet
