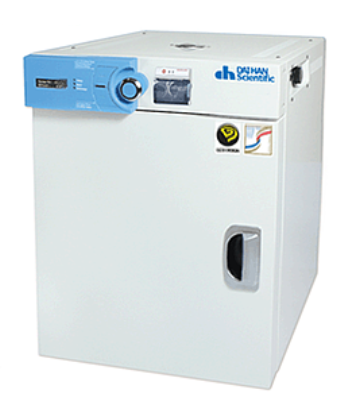

DaiHan SteD-17 17Lit Dry Heat Sterilizer (17L, 230V)

- Capacity: 17 L

- Heater Power: 1400W

Sterilization Modes:

① Custom Setting Mode

② 3min at 190℃

③ 1hr at 160℃

- Temp.:

Range: Room Temp 5℃~230℃

Fluctuation: ±1.0℃ at 37℃. ±1.5℃ at 160℃ & 190℃

Variation: ±1.0℃ at 37℃; ±3.0℃ at 160℃; ±5.0℃ at 190℃

Sensor: PT100

Cooling Time: Approx. 50min Down to 50℃

- Temp. Resolution: ± 0.1℃

- Circulation: Forced-air Type

- Controller: Digital PID Control by Advanced Microprocessor; Jog-Dial with Push Button

- Display: Digital LCD with Back Light

- Timer: 99hr 59min (Delay / Continuous Function)

- Printer:

Thermal printer with 1 Record Paper Roll: w58×Φ40mm

1000 Sterilization Cycle Data / roll (Date; Temperature; Time; Error Status; etc.)

- Material:

Internal: Stainless-steel (#304)

External: Powder Coated Steel

Insulation: Glass Wool

- Shelf (Included): 2 Stainless-steel Wire Shelf; Load per Shelf : 16kg

- Safety Device: Over Temp and Over Current Protector; Sensor Error Detector

- Dimension(w×d×h)

Interior: 225×215×h340mm

Exterior: 546×485×h517mm

- Net Weight: 30kg

- Gross Weight: 38kg

- Power Consumption: 1.5 Kw

- Electric Reqts.: 230V; 50/60 Hz

Datasheet
