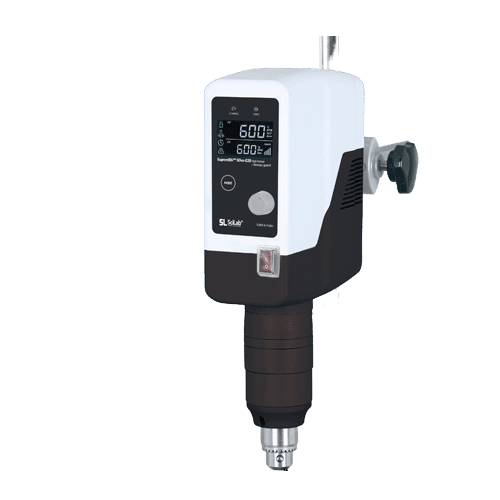

DaiHan SOvs-G30 Ultra Hi-Torque Overhead Stirrer (300,000 mPas; 100L)

Stirring Capacity (H20): Max. 100 Lit

Speed Range & Motor: 10~600 rpm, Hi-Capacity Brushless DC Motor, Gear(Max 39:1 Ratio)

Maximum Viscosity/Torque: 300,000 mPas/750 Ncm

Motor Rating(Input/Output): 250/200 W

Controller: Digital PID Control

Safety Device: Over Heat & Current Protector for Motor

Chuck Grip Capa. Φmm: dia Φ 6~10mm Shafts, Flex-Coupling(Φ6~16mm)

"Push-Through" Shafts: dia Φ 10mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Dimension (w x d x h): 84 x 205 x 355 mm

Weight: 3.5 kg

Material: Aluminum Die Casting

Power Consumption: 300W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz

Datasheet
