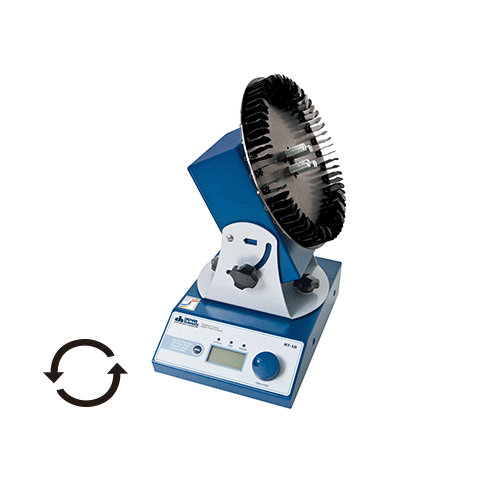

DaiHan RT-10 Programmable Digital Rotator (60rpm)

Speed range: 5-60 rpm

Angle range: 0° - 90°

Motor: 35W

Program Function: 10 Steps, 6 Programs

Timer & Alarm: 99hr 59min (with Continuous run.), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Programmable Digital Feedback Controller with Jog-Shuttle

Temp. Resistance: Lower than 65°C (Dry Air)

Safety: Circuit Overload Protector for motor

Dimensions (w x d x h)(mm): 200 x 250 x h260 mm

Weight: 6 kg

Others: CE Certified, PL(Product Liability) Insurance Storage Function (RPM, Timer), Locking Mode (Jog-Shuttle Input Disabled), User Self-compensation Function, Alarm (Error Status and Tuner-end)

Power Consumption: 40 W

Electrical Reqts. 1 Phase, AC 230V, 50Hz

Optional Disk & Roller Drum

DH.WRT00100: (1) Disk, "WRT100", for 50ml conical tube 8ea

DH.WRT00110: (2) Disk, "WRT110", for 15ml conical tube 16ea

DH.WRT00120: (3) Disk, "WRT120", for 1.5ml conical/centrifuge Tube x 32ea

DH.WRT00130: (4) Disk, "WRT130", for 1.5ml conical/centrifuge Tube x 60ea

DH.WRT00140: (5) Disk, "WRT140", 250ml Flask-capacity x 4ea

Spare Knob & Post

DHANRT00300 (6)4 x knobs & 4 x Post, "WRT300", for Installing Disk
