DaiHan MSH500 500℃ High-Temp Hotplate Stirrer (200×200mm, Unit Only)

Material:

-Body: Powder Coated Aluminum

- Plate: Solid Ceramic Glass Plate. 200×200mm

Motor & Stirring Capa.: Permanently Brushless Shade Motor(BLAC). Max. 20 Lit

Speed & Control Resolution: 80~1.500 rpm. 5 rpm

Temp Range & Accuracy: Max. 500℃. ±0.3℃ at Set Temperature

Temp Resolution: 0.1℃-Display. 0.5℃-Control

Temp. Uniformity: Specially Designed Heating Module: Temp. Difference 10% less

Heating Power/Consumption: 850W

Timer & Alarm : 99hr 59min (with Continuous run.). Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Feedback Controller with Jog Dial (Turn+Push) and Touch button

Stirring Bar: 3cm bar-included. Usable: up to 5cm bar

Safety Circuit: Over Temp Protection. Hot Top Indicator LED Lamp

included Standard Acc: 1ea Stir Bar

Permissible Temp. & RH %: Ambient +5 ~ 50℃. 85% RH

Dimension & Weight: 200×332×h114mm. 3.8kg

Electrical Reqts: 1 Phase. AC 230 V. 50 / 60 Hz. with Cord/Plug

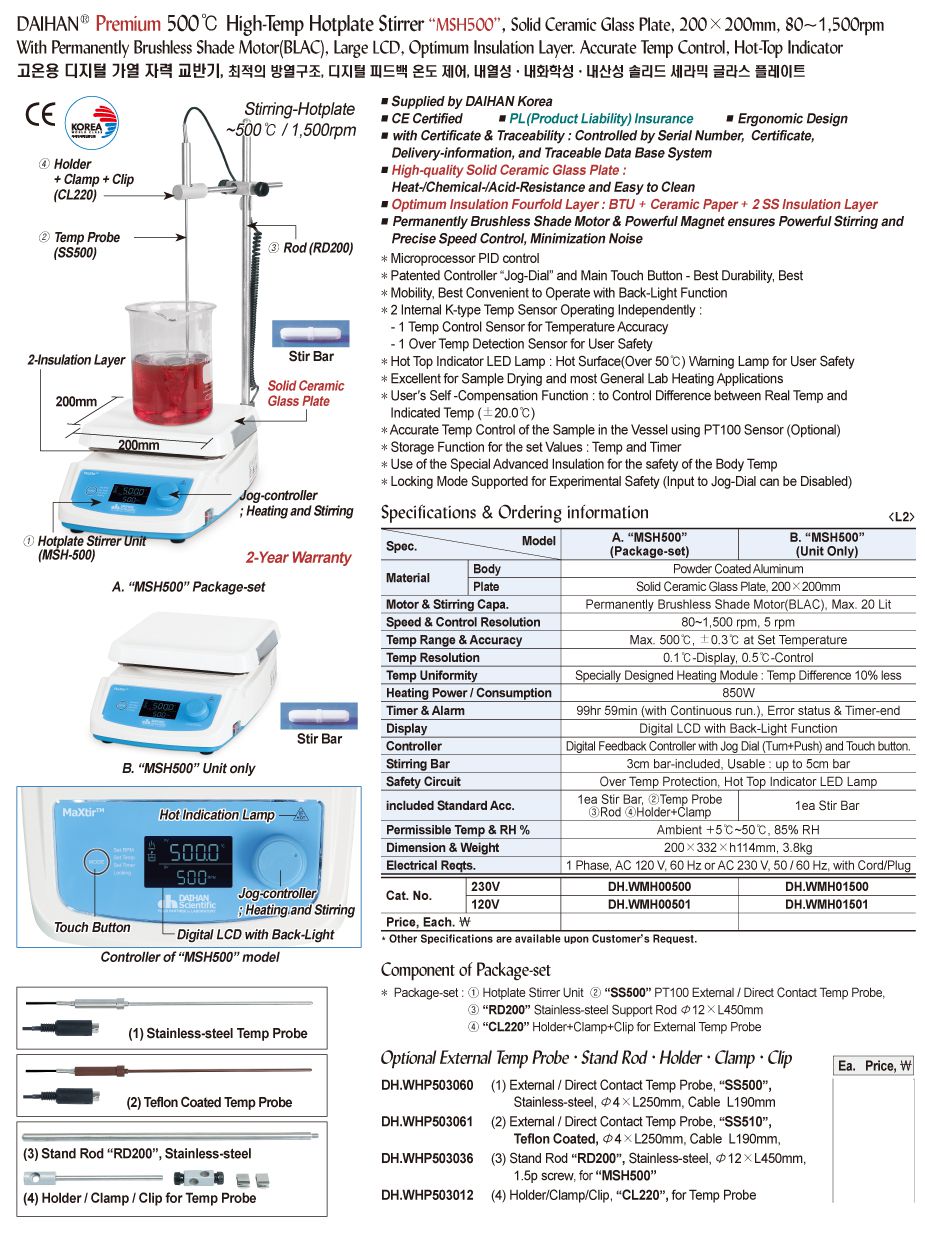

Datasheet
