DaiHan MSH-20D-SET 380℃ Standard Digital Hotplate Stirrer (Set, 180×180mm)

Plate Size 180×180mm Plate-type

Material:

-Body: Powder Coated Aluminum

- Plate: Ceramic Coated Aluminum (Chemical / Acid Resistance. Easy to Clean)

Motor & Stirring Capa.: Permanently Brushless Motor(BLDC. Rating : 10w). Max. 20Lit

Temp. Uniformity: Specially Designed Heating Module: Temp. Difference 10% less

Heating Power/Consumption: 600W

Stirring Bar: 3cm bar-included. Usable: up to 5cm bar

Permissible Temp. & RH %: Ambient +5 ~ 50℃. 85% RH

Dimension & Weight: 206×307×h99mm. 2.8kg

Electrical Reqts: 1 Phase. AC 230 V. 50 / 60 Hz

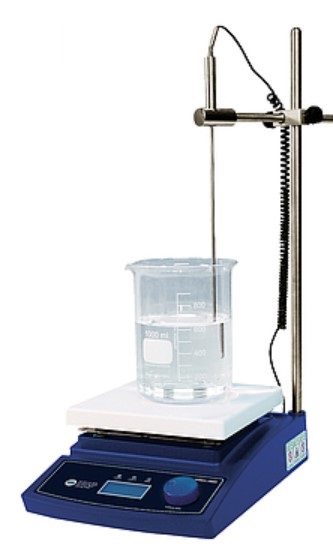

Set:

① Hotplate Stirrer “MSH-20D”

② “SS500” PT100 External/ Direct Contact Temp Probe

③ “RD200” Stainless-steel Support Rod Φ12×L450mm.

④ “CL220” Holder+Clamp+Clip for External Temp Probe
