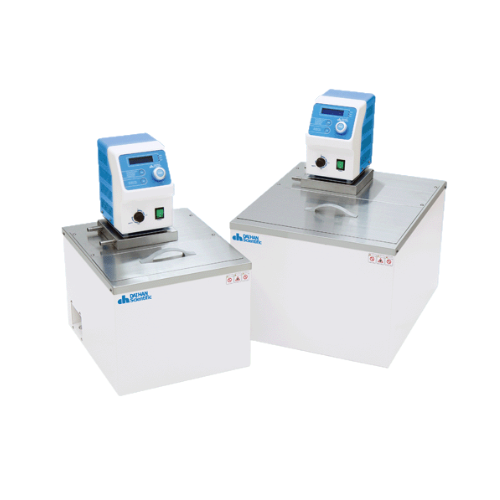

DaiHan MaXircu CH-8 High Temperature Bath Circulator (+5°C - 250°C; 8l; 1.0 kW)

Capacity: 8l

Temperature range & accuracy: Room temperature +5°C - 250°C; ±0.1°C

Temperature resolution: 0.1°C-display, 0.5°C-control

Temperature uniformity & probe: ±0.2°C, PT100

Heating Power: 1.0 kW

External circulation nozzle: inner Ø10.5 mm, outer Ø12.5mm

Pump: max.flow rate: 16l/min, max.pressure: 5 psi, max.lift: 2.8 m

Timer & alarm: 99hr 59 min (delay & continuos run), error status & timer end

Effective space: 180 x 130 x 155 mm

Internal dimensions (W x D x H): 180 x 320 x 155 mm

External dimensions (W x D x H): 303 x 443 x 569 mm

Packing size & gross weight: 470 x 400 x 500 mm, 19 kg

Power supply: 1 Phase AC 230V, 50/60 Hz
