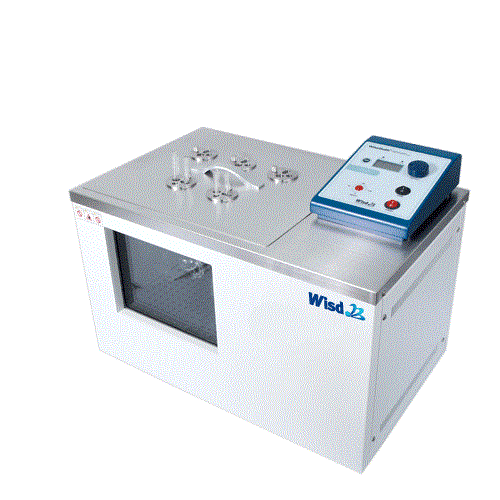

DaiHan WVB-30 Digital Precise Viscosity Bath (room t°+5°C~100°C, 30L/min)

Range & Accuracy: +5°C~+100°C, ±0.1°C

Temp. Resolution: 0.1°C-Display, 0.1°C-Control

Temp. Uniformity & Probe: ±0.2°C, PT100

Pump: Magnetic Drive, Max Flow: 30Lit/min

Heating Powwer : 2 kW

Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Fuzzy Controller with Jog-Shuttle Switch (Turn+Push)

Safety Circuit: Over-Temp./-Curent protection, Sensor Error Detection

Lid: Included 5 Holes Stainless-steel Lid for Viscometer Holder

Drain Valve: Mounted

Viewing Window Sizes (mm): 230 x180

Material: Stainless-steel (#304) Intermal, Powder Coated steel-External, Vaccum Sealed and Tempered Safety Pair Glasses-Windows

Dimension(wxdxh):

+ Effective Space (mm): 330 x 300 x 260

+ Internal (mm): 350 x 300 x 300

+ External (mm): 585 × 375 × 420

Packing Size (mm)/Gross Weight (kg): 640 x 450 x 500/24 kg

Electrical Reqts.: 1 Phase, AC 230V, 50/60Hz
