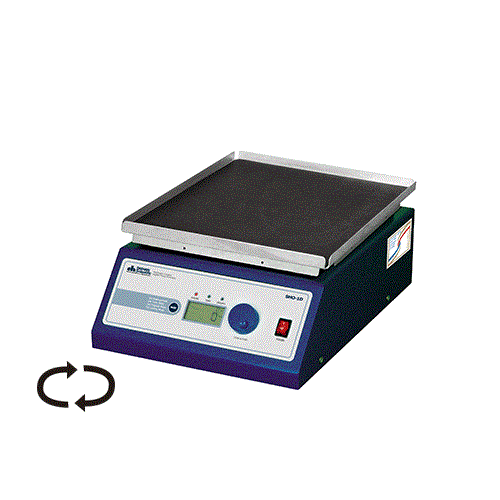

DaiHan SHO-1D Digital Orbital Shaker (10~300 rpm)

Shaking motion: Orbital Motion

Speed Range: 10~300 rpm

Max.Load: 8 kg

Amplitude of Rotation (mm): 8mm

Motor: Brushless DC Motor

Permissible Ambient Temparature: Ambient + 5~50℃

Permissible Relative Moisture: 85%

Timer & Alarm:: 99hr 59 min ( with Continuous run.), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Programmable Digital Feedback Controller with Jog-Shuttle Switch (Turn+Push)

Program Function: 10 steps, 6 programs

Safety Circuit: Overload Protector for Motor

Dimension (w x d x H) (mm): 260 x 330 x 150

Net Weight: 14 kg

Packing Size (w x d x H) (mm) & Gross Weight: 450 x 350 x 250, 18 kg

Power Consumption: 40 W

Electrical Reqts.: Free Volage ( 1 Phase, AC 80~240V, 50/60Hz)

Datasheet
