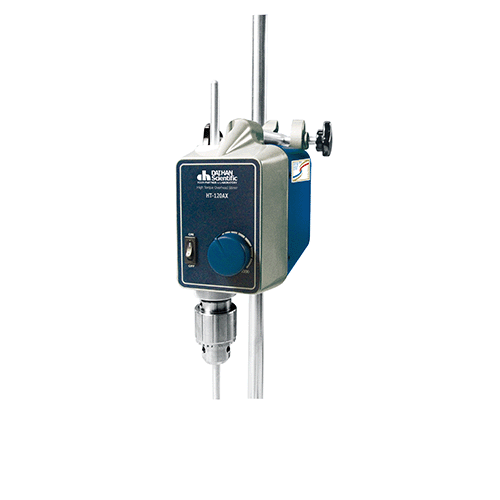

DaiHan HT-120AX-Set High-Torque Analog Overhead Stirrer Package-Set (60 L; 90,000 mPas)

Stirring Capacity (H20): Max. 60 Lit

Speed Range: 50~1000 rpm

Maximum Viscosity/Torque: 90,000 mPas/210 Ncm

Motor: Worm-Geared DC Motor (3:5:1 Ratio)

Motor Rating(Input/Output): 130/120 W

Chuck Grip Capa. Φmm: dia Φ 6~12mm Shafts

"Push-Through" Shafts: dia Φ 10mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Controller: Digital PID Control

Safety Device: Over Heat & Overload Protector for Motor

Material: ABS and Aluminum

Dimension (w x d x h): 90 x 210 x 130 mm

Weight: 4 kg

Packing Size: 320 x 300 x 180 mm

Gross Weight: 8kg

Power Consumption: 130W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz
