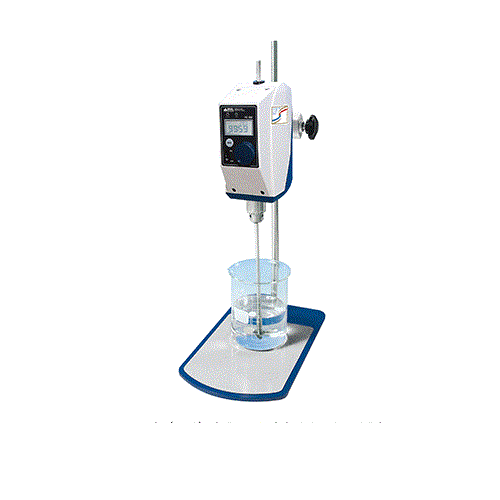

DaiHan HS-30D-Set High-Speed Digital Overhead Stirrer Package-set (3000rpm, 10L)

Stirring Capacity (H20): Max. 10 Lit

Maximum Viscosity/Torque: 5000 mPas/70 Ncm

Speed Range & Resolution : 200~3000rpm; 1rpm-Display, 1rpm-Control

Motor: Direct Driven DC-motor

Safety Device: Over Heat & Current Protector for Motor

Motor Rating(Input/Output): 83/75W

Timer & Alarm: 99hr 59min(Delay & Continuous run), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Feedback Controller

Display: Digital LCD wwith Back-light Function

Chuck Grip Capa. Φmm: dia Φ 3~10mm Shafts

"Push-Through" Shafts: dia Φ8mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Material: ABS & Aluminum

Dimension (w x d x h): 90 x 145 x 180 mm

Weight: 4.5 kg

Packing Size & Gross Weight: 320 x 300 x180, 5kg

Power Consumption: 85W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz

"HS-30D" Set : Complete with :("HS-30D Stirrer Unit, "S721" Stainless-steel Impeller(Rod Φ8 xL500mm, 3-Blade Φ50mm), "CL200" Clamp, and "ST110" Standard Plate Stand(Rod Φ16 x L800mm, Base w20 x d35cm)
