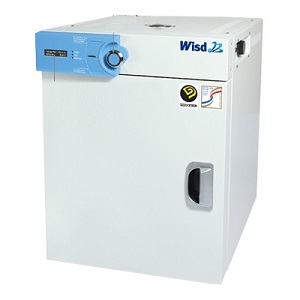

DaiHan ON-32 Gravity-air Drying Oven (32L,230℃, ±0.5℃)

Capacity: 32 Lit

Dimension(w x d x h):

+ Interior(mm): 310 x 290 x 360

+ Exterior(mm): 458 x 557 x 664

Heater Power: 500 W

Temp.Range: Room Temp +5°C to 230°C

Temp.Fluctuation: ±0.5°C at 100°C, ±0.6°C at 150°C

Temp.Variation: ±1.2°C at 100°C, ±2.2°C at 150°C

Temp.Sensor: PT 100

Control Resolution: ±0.1°C

Heat-up Time: 30 min. to 100 °C, 43 min. to 150 °C

Recovery Time (Door open 30 sec): 8 min. to 100°C, 10 min. to 150°C

Controller: Digital PID Control by Advanced Microprocessor Jog-Dial with Push Button

RS232 Port: Available to connect with PC

Display: Digital LCD with Back Light

Timer: 99hr 59 min (delay/continuous function)

Storage: Temperature and Timer setting values

Material:

+ Internal: Stainless-steel(#304), Corrosion Resistant

+ External: Powder Coated Steel

+ Insulation: Glass Wool

Shelf(included):

+ 2 Wire shelf

+ Load per Stainless-steel Wire Shelf: 16 kg

Ventilation: (1ea) Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm

Circulation: Gravity Type

Safety device: Over Temp. and Over Current Protector, Sensor Error Detector

Alarm: Error Status and Timer-end

Net Weight(kg): 36

Packing size(w x d x h)(mm): 562 x 664 x747

Gross Weight(kg): 43

Power Consumption: 502 W

Energy Consumption at 100°C: 90 Wh

Energy Consumption at 150°C: 181 Wh

Electrical Reqts: 230V, 50/60Hz

Spare Stainless-steel Wire Shelf

DH.W0N11032 Wire Shelf, for 32 Lit, "ONS032", w280 x d280mm

DH.W0N11050 Wire Shelf, for 50 Lit, "ONS050", w340 x d310mm

DH.W0N11105 Wire Shelf, for 105 Lit, "ONS105", w455 xd375mm

DH.W0N11155 Wire Shelf , for 155 Lit, "ONS155", w520 x d440mm
