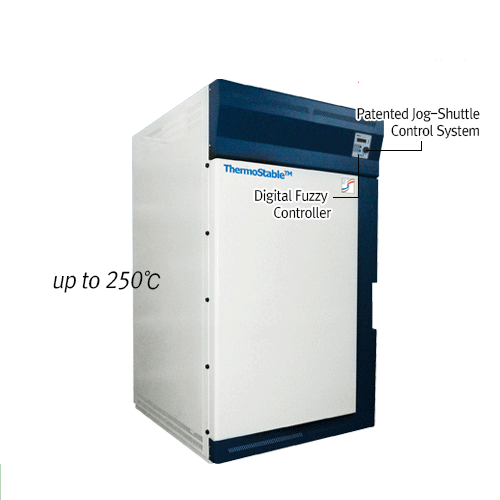

DaiHan DH.WOC00800 High Clean Air Drying Oven (800lit; 230V 3Phase)

- Capacity : 800 Lit.

- Air Flow-type: High Clean Air Convection Mechanism

- Filter for Clean Air: HEPA Filter Class 100 for High Temperature

- Temp.

+ Range & Sensor Room Temp.: +5 ℃ to 250 ℃, PT100 Sensor

+ Accuracy & Uniformity: ± 1.0 ℃, ± 2.0 ℃ at 200 ℃

- Timer & Alarm: 99hr 59min (with delay / Continuous run.), Error status & Timer-end

- Display: Digital LCD with Back Light

- Controller: Digital Fuzzy Controller with Jog-Shuttle Switch(Turn+Push)

- Verification: Timer Operated Verification System

- Resolution: Control : ±1.0℃, Display : ±1.0℃

- Shelves: 3ea of Chrome Coated steel Shelves of Adjustable Position

- Load per Rack: 16 kg, Total : 48 kg (16kg×3 Shelves)

- Safety Circuit: Over Temp. and Over Current Protector, Sensor Error Detector

- Materia:l Internal : Stainless-steel (＃304), External : Powder Coated steel,

- Insulation : Glass Wool

- Others Storage: Function, Locking Mode

Dimension (w×d ×h)

+ Interior (mm) 1000x800x1000

+ Exterior (mm) 1500x1200x1900

- Power Consumption: 9.4 kW

- Electric Reqts.: 3 Phase 230 V 50/60Hz
