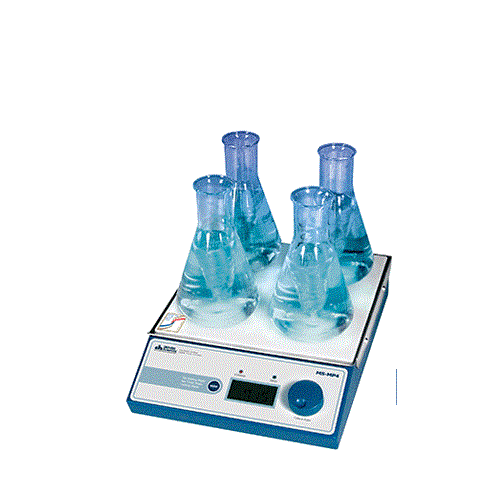

DaiHan MS-MP4 Digital Multi-point Magnetic Stirrer (1,200rpm; 0.5L/P)

Number of Stirring Points: 4(2 x 2) Stirring Points

Plate Size: 208 x 215mm

Stirring Capacity (H20): Max. 0.5 Lit per Point

Distance Between Stirring Points: 100mm

Speed Range: 80~1,200rpm

Motor Rating: 16/9 W

Speed Control Resolution: 5rpm

Timer & Alarm: 99hr 59min(Continuos run), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Feedback Controller with Jog-Shuttle Switch(Turn+Push)

Stirring Bar: 4ea 3cm bar-included, Usable: up to 3cm bar

Permissible Ambient Temperature: Room Temp. +5~50°C

Permissible Relative Moisture: 85%

Material:

+ Plate: Stainless-steel (# 304)

+ Body: Powder Coated steel

Dimension (w x d x h): 208 x 280 x 75 mm

Weight: 2.5 kg

Others: CE Certificated, PL (Product Liability) Insurance, Storage Function (RPM, Timer), Locking Mode (Jog-Shuttle Input Disabled), Alarm (Error Status and Timer-end)

Packing Size (w x d x h) & Gross Weight: 300 x 330 x 180mm/ 6kg

Power Consumption: 20W

Electrical Reqts: Free Voltage (1 Phase, AC 80~240 V, 50/60Hz)

Datasheet
