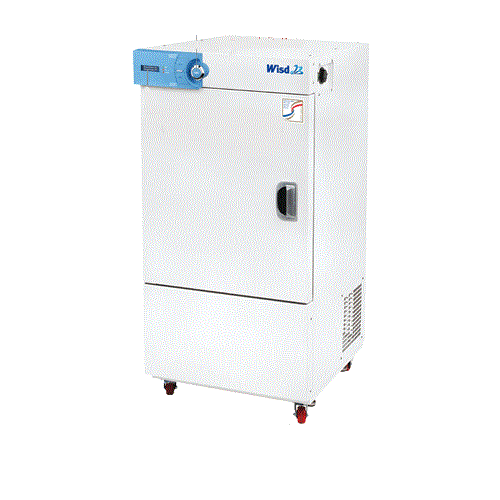

DaiHan ThermoStable™ IR-150 Low Temperature Incubator (60℃, ±0.2℃, 150L)

Capacity: 150 L

Temp.Range & Accuracy: 0°C~60°C, ±0.2°C at 37°C

Temp.Uniformity & Sensor: ±0.5°C at 37°C, ±1.4°C at 50°C, PT100 Sensor

Heat-up Time: 20 min. to 37°C, 20 min. to 50°C

Recovery Time(Door open 30 sec): 10 min. to 37°C, 12 min. to 50°C

Heating Power/Consumption: 700 W

Compressor: 1/4 HP

Timer & Alarm: 99hr 59min (with delay/Continuous run.), Error status & Timer-end

Storage: Alarm & Timer

Display: Digital LCD with Back Light

Controller: Digital PID Controller with 1 Jog-Shuttle Switch (Turn & Push)

Inner Door: with 1ea of Inner Tempered Glass Door

Shelves: Included 3 x PE-coated Steel Shelves

Permitted Total Load: Total load 48 kg (16kg x 3 Shelves)

Material: Internal: Stainless-steel(#304), External: Powder Coated-steel

Dimension(w x d xh):

+ Interior(mm): 505 x 505 x 610

+ Exterior(mm): 640 x 832 x 1313

Net Weight: 118 kg

Packing size (mm) Gross Weight: 900 x 1000 x 1650, 191 kg

Power Consumption: 1.6 kW

Electrical Reqts: 1 Phase, AC 230 V, 50/60 Hz

(1) Spare PE-coated Steel Wire Shelf

DH.WIR11150 Wire Shelf, PE Coated steel, "IRS150", w470 x d480mm, for "IR-150", "IR-250"

DH.WIR11420 Wire Shelf, PE Coated steel, "IRS420", w675 x d585mm, for "IR-420"

DH.WIR11700 Wire Shelf, PE Coated steel, "IRS700", w770 x d680mm, for "IR-700"

(2) Optional Stainless-steel Wire Shelf

DH.WIR21150 Wire Shelf, Stainless-steel, "IRU150", w470 x d480rnm, for "IR-150", "IR-250"

DH.WIR21420 Wire Shelf, Stainless-steel, "IRU420", w675 x d585mm, for "IR-420"

DH.WIR21700 Wire Shelf, Stainless-steel, "IRU700", w770 x d680mm, for "IR-700"
