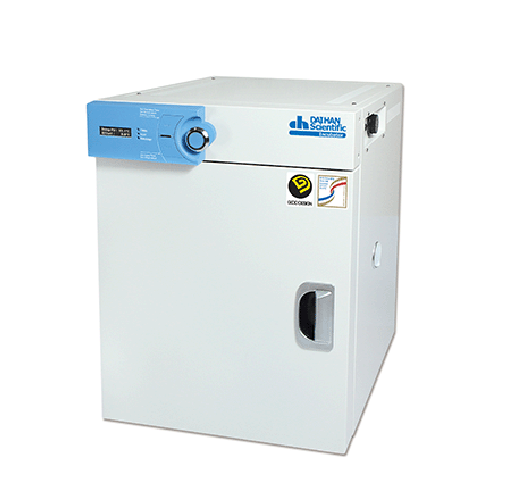

DaiHan DH.WIG31105 Incubators, Gravity Convection-type (105lit, with IQ, OQ)

- Capacity: 105L

- Dimension (w×d ×h)

Interior (mm): 485x410x535

Exterior (mm): 633x595x879

- Heater Power: 300W

- Temp.:

Range: Ambient Temperature +5℃ to 70℃

Fluctuation: ± 0.2℃ at 37℃, ± 0.3℃ at 50℃

Variation: ± 0.5℃ at 37℃, ± 0.9℃ at 50℃

Sensor: PT 100

- Control Resolution: ±0.1℃

- Heat-up Time: 20 min. to 37 ℃ , 40 min. to 50 ℃

- Recovery Time (Door open 30sec): 10 min. to 37 ℃; 15 min. to 50 ℃

- Controller: Digital Fuzzy Control by Advanced Microprocessor Jog-Dial with Push Button

- RS232: Port Available to connect with PC

- Display: Digital LCD with Back Light

- Timer: 99hr 59 min (delay/continuous function)

- Material

Internal: Stainless Steel (#304)

External: Powder Coated Steel

Inner Door: Inner Tempered Glass Door

- Shelves: 2ea of Teflon-coated Steel Wire Shelves included

- Ventilation: 1ea of Ventilation hole with Stainless Steel Cap, Hole Diameter 40mm

- Circulation: Gravity Convection Type

- Safety device: Over Temp. and Over Current Protector, Sensor Error Detector

- Others:

UL / CUL Certified, CE Certified

Storage Function (Temp. and Time)

Locking Mode (Jog-Dial Input Disabled)

Alarm (Error Status and Timer-end)

- Net Weight (kg:) 59

- Packing Size (w×d×h) (mm): 731x710x1018

- Power Consumption: 292.9 W

- Energy Consumption:, at 37°C: 63 Wh , at 50°C 152 Wh

- Power Supply: 120V, 60Hz or 230V, 50/60Hz
