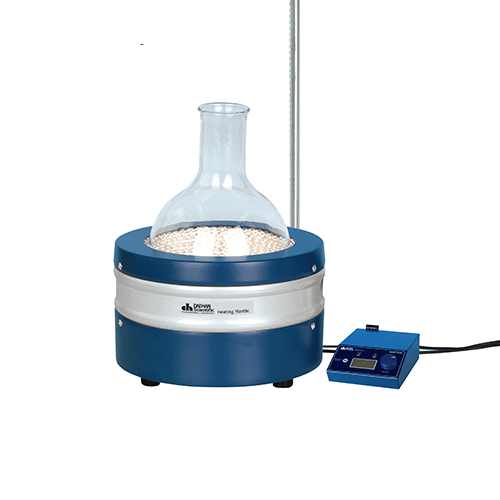

DaiHan DH.WHM12092 High Temp-type Remotecontrolled Flask Heating Mantle (250 ml, 650°C)

Flask:

+ Capacity: 250 ml

+ Dia.Ømm: 83~86 mm

Mantle:

+ Watt: 250 W

+ Inside Depth: 50 mm

+ Outside Ø x h(mm): Ø145 x h75
Aluminum case

Optional:

- Remote Controller:

(a) DH.WHM13500: Analog Remote Controller, 5~100% of Rated Voltage, Up to 1.2KW

(b) DH.WHM12500: Digital Remote Controller, Ambient +5~700°C, ±1°C Uniformity at Set Temp

- Temp. Probe, Stand Rod, Holder, Clamp for Digital Temp. Remote

Controller

DH.WHP503040: Direct Contact Temp.Probe, K-type,"SS300", L250mm x Ø 4.8mm

DH.WHP503050: Direct Contact Temp.Probe, K-type,"SS400", L380mm x Ø 4.8mm

DH.WHP503041: Direct Contact Temp.Probe, K-type,"SS310", Teflon Coated, L250mm x Ø 5mm

DH.WHP503051: Direct Contact Temp.Probe, K-type,"SS410", Teflon Coated, L380mm x Ø 5mm

DH.WHP503037: (3) Stand Rod, Ø12.7 x L520mm, "RD300", for Heating Mantles

DH.WHP503012: (4) Holder & Clamp "CL220" for Temp. Sensor
