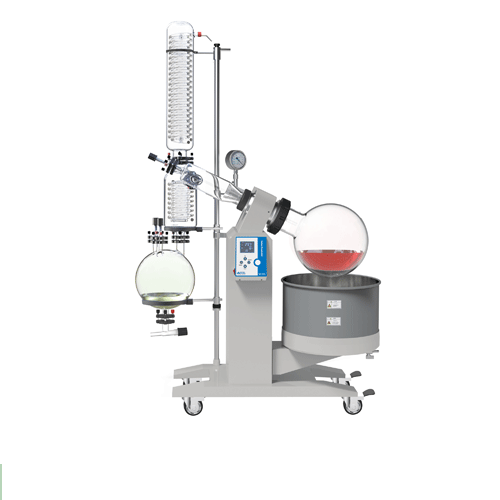

DaiHan DH.WEV01050 Digital Rotary Evaporator (50Lit., 380V, 3Phase)

- Evaporating Flask: 50 Lit, Flange Opening Φ125 mm

- Receiving Flask: 20 Lit.

- Condenser: Standing, Main & Auxiliary Cooling and Highly Efficient 3 Circulating Cold Trap

- Temp. Range & Rotary Speed: 5℃ ~ 99℃, 10 ~ 110 rpm

- Evaporating Capability: Water : 9 Lit./h, Alcohol : 19 Lit./h

- Cooling Surface: Main Condensr 9.500 cm2; Auxiliary Condensr 5000 cm2

- Achievable Vacuum: 399.9Pa(below 3mmHg)

- Functional of Lifting Table & Stroke: Electric & Manual, 0 ~ 230 mm

- Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal

- Motor: 90 W, Phase DC Induction Motor

- Heating Boiler: Stainless-steel Water Bath

- Display: Digital display

- Dimension (mm): 1320X770XH2340

- Power Supply & Cord Plug.: 380V, 50Hz
