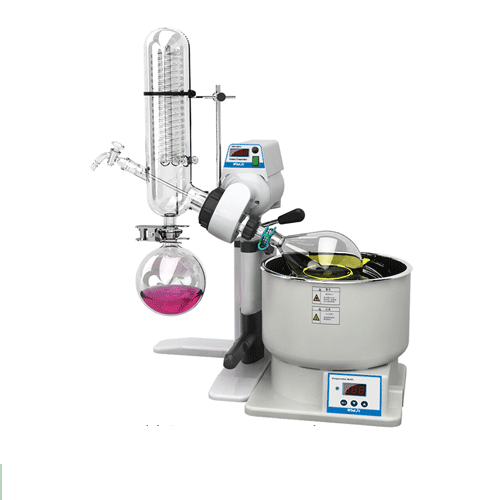

DaiHan DH.WEV01001V Digital Rotary Evaporator (10 ~ 180 rpm)

- Condenser Type: Vertical-type

- Bottle Capacity:

Evaporating: Included 2x Evaporating Flasks: 1x0.5Lit & 1 x 1 Lit; Available 100-/250-ml, 2 Lit Evaporating Flask ( Optional)

Reveiving: Included 1ea 1 Lit Flask

- Rotary Speed: 10 ~ 180 rpm

- Evaporating Capability: 20 ml/min

- Cooling Surface: 1300cm2

- Achievable Vacuum: 399.9Pa(below 3mmHg)

- Bath Capacity: 6.5 Lit. / Φ254×130 mm

- Temp. Range: 0℃ ~ 100℃

- Elevating Stroke: 100 ~ 250 mm

- Vacuum Sealing: Double Sealing Rings made of Teflon+Vinton Materials

- Power Consumption: Motor : 25 W, Heater : 1.05KW

- Controller & Display: PID Controller, Digital display

- Dimension & Net Weight: 560×320×h660mm / 9.5 kg

- Power Supply: AC 220V,50/ 60Hz or AC110V, 60Hz
