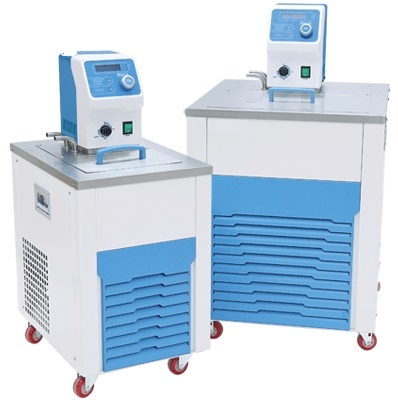

DaiHan MaXircu™ CL-12 Internal/External Digital Precise Refrigerated/Heating Bath Circulator (-35°C~ +150°C, 12 L)

Temp. Range & Accuracy: -35°C~ +150°C, ±0.1°C

Temp. Resolution: 0.1°C-Display, 0.1°C-Control

Temp. Uniformity & Probe: ±0.2°C at -20°C, PT100

Pump: Max Flow Rate: 25Lit/min(Controlled 5 Steps Flow Rate Speed), Max Pressure:7.5 psi, Max Lift: 4m

Bath Volume: 12 Lit

Heating & Refrigerator: 1.5 kW, 1/2HP

Cooling Capacity:

+ at + 20 °C: 530 W

+ at 0 °C: 370 W

+ at -20 °C: 210 W

Refrigerant: CFC Free(R-404A) Refrigeration System

Total Power Consumption: 2.2 kW

Compressor Control: Intelligent Control of Refrigerator for preventing Compressor Overload

External Circulation Nozzle: id 10.5/od 12.5mm (For Inner Circulat.: to Connect directly the in-loutlet Nozzles)

Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Fuzzy Controller with Jog-Dial Knob (Turn+Push)

Safety Circuit: Over-Temp./-Curent protection, Sensor Error Detection, Leakage Breaker

Material: Stainless-steel (#304) Intermal, Powder Coated steel-External, 40 mm Thickness Urethane Foaming Insulation

Lid & Drain Valve: Included Stainless-steel Flat Lid, Ball Valve, Optional Dome Lid

Dimension(wxdxh):

+ Effective Space (mm): 230x 181 x 150

+ Internal (mm): 230 x 350 x 150

+ External (mm): 400 × 523 × 807

+ Packing Size (mm): 530 x 630 x 985

Gross Weight (kg): 55 kg

Electrical Reqts.: 1 Phase, AC 120V, 60Hz
