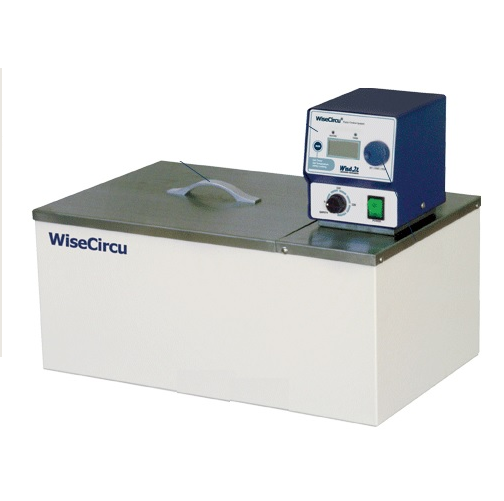

DaiHan WCB-6 Internal Digital Precise Circulation Water Bath (+5°C~+100°C,6L)

Capacity: 6 Lit

Temp.Range: Room Temp. +5°C~ +100°C

Accuracy: ±0.1°C

Temp.Resolution: 0.1°C-Display, 0.1°C-Control

Temp.Uniformity: ±0.2°C

Probe: PT100

Heating Power: 800 W

Pump: 5 Lit/Min

Circulation nozzle: id.7/od 11.mm (id.9/od 12.mm silicon tube connected for inner circulation)

Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end

Display: Back-Light Digital LCD

Controller: Digital Fuzzy Controller

Safety Circuit: Over-Temp./-Curent protection, Sensor Error & Low Level Detection

Material: Stainless-steel (#304) Intermal, Powder Coated steel-External

Dimension(wxdxh):

+ Effective Space (mm): 120 x 155 x h150

+ Internal (mm): 300 x 155 x h150

+ External (mm): 330 x 185 x h385

+ Packing Size (mm): 350 x 210 x h410

Gross Weight (kg): 11 kg

Electrical Reqts.: 1 Phase, AC 230V, 50/60Hz
