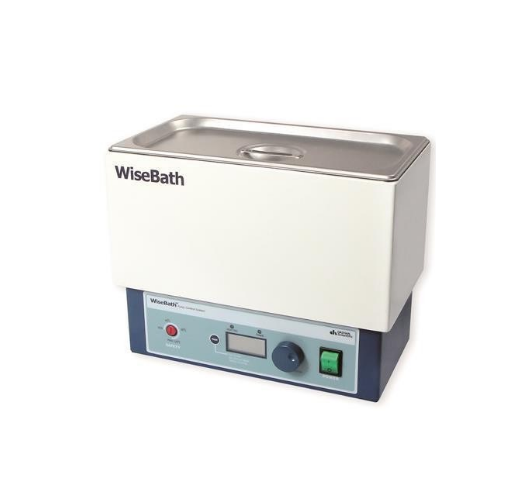

DaiHan WB-22 Digital General Purpose Water Bath (+5°C~+100°C,22L)

Capacity: 22 Lit

Temp.Range: Room Temp. +5°C~ +100°C

Accuracy: ±0.1°C

Temp.Resolution: 0.1°C-Display, 0.1°C-Control

Temp.Uniformity: ±1.0°C

Probe: PT100

Heating Power: 2kW

Timer & Alarm: 99hr 59min (Delay & Continuous run), Error status & Timer-end

Display: Digital LCD with Back-Light Function

Controller: Digital Fuzzy Controller with Jog-Shuttle Switch (Turn+Push)

Safety Circuit: Over-Temp./-Curent protection, Sensor Error Detection

Material: Stainless-steel (#304) Intermal, Powder Coated steel-External

Lid: Included Stainless-steel Flat Lid, Optional Dome Lid

Drain Valve: Mounted (Ø9.5~11mm)

Dimension(wxdxh):

+ Effective Space (mm): 500x 295 x h110

+ Internal (mm): 500x 295 x h150

+ External (mm): 535x 330 x h260

+ Packing Size (mm): 570x 360 x h310

Gross Weight (kg): 14 kg

Electrical Reqts.: 1 Phase, AC 230V, 50/60Hz
