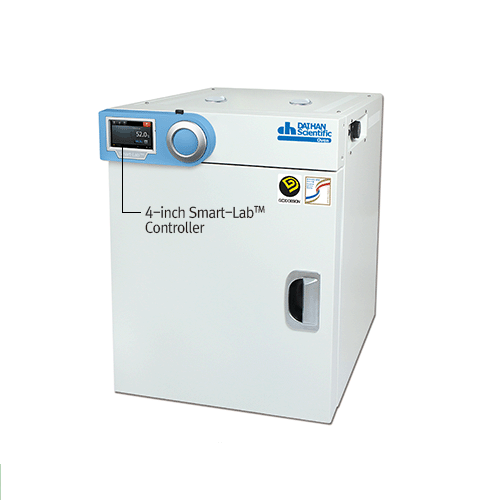

DaiHan DH.SWON32155 SMART Oven Gravity Convection (Window, 155Lit., with IQ, OQ)

- Capacity:155Lit

- Dimension (w×d ×h):

+ Interior (mm) 475x550x600

+ Exterior (mm) 718x776x944

- Heater Power 1.6kW

- Temp.:

+ Range Ambient Temperature: +5℃ to 230℃

+ Fluctuation: ± 0.8℃ at 150℃

+ Variation: ± 1.2℃ at 100℃, ± 2.2℃ at 150℃

+ Sensor PT 100

- Control Resolution ±0.1℃

- Heat-up Time: 35 min. to 100 ℃, 50 min. to 150℃

- Recovery Time (Door open 30sec): 12 min. to 100 ℃, 10 min. to 150℃

- Controller: Smart - Lab Controller

- RS232 Port: Available to connect with PC

- Display: 4" Full touch screen TFT LCD

- Timer: 99hr 59 min (delay/continuous function)

- Material: Internal: Stainless Steel (#304); External: Powder Coated Steel; Insulation: Glass Wool

- Shelves: 2ea of Stainless steel wire Shelf; Load per Shelf: 16kg

- Ventilation: Ventilation hole with Stainless Steel Cap, Hole Diameter 40mm; 2ea

- Circulation: Gravity AIR Type

- Safety device: Over Temp. and Over Current Protector, Sensor Error Detector

- Alarm: Error Status and Timer-end

- Net Weight (kg): 78

- Power Consumption: 1566 W

- Energy Consumption, at 100°C: 204Wh; at 150°C: 398Wh

- Power Supply: 230V, 50/60Hz
