DaiHan OVS-G30-Set Ultra Hi-Torque Overhead Stirrer Package-set (550rpm; 350,000 mPas)

Stirring Capacity (H20): Max. 100 Lit

Maximum Viscosity/Torque: 350,000 mPas/800 Ncm

Speed Range: 10~550rpm

Motor: Hi-Capacity Brushless DC-motor, Gear(11:1/60:1)

Safety Device: Over Heat & Current Protector for Motor

Motor Rating(Input/Output): 200/180W

Controller: Digital PID Control

Chuck Grip Capa. Φmm: dia Φ 6~10mm Shafts, Flex-Coupling (Φ 6~16mm)

Permissible Temp. & Humidity: 0~40°C, 80%

Material: Aluminum Die Casting

Dimension (w x d x h): 84 x 205 x 355 mm

Weight: 3.5 kg

Power Consumption: 250W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz

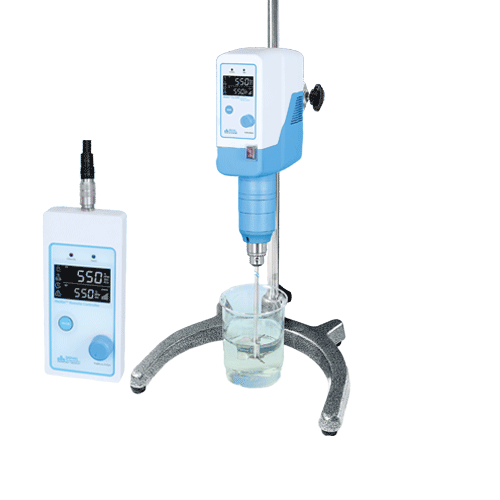

"OVS-G30" Set : Complete with :("OVS-G30 Stirrer Unit, "S723" Stainless-steel Impeller(Rod Φ8 xL500mm, 4-Blade Φ70mm), "CL200" Clamp, and "KA1177" Safety Stand(Rod Φ23 x L800mm, Base w34 x d29cm)
