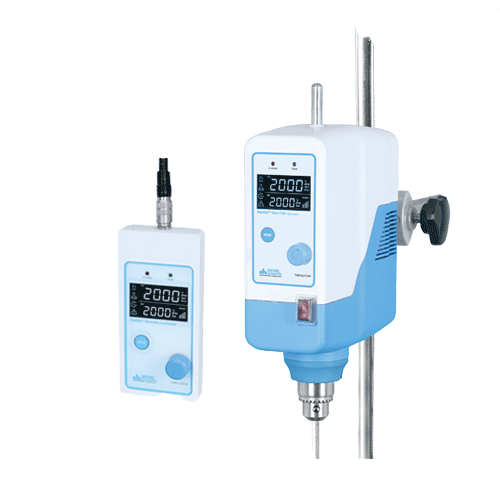

DaiHan OVS-T16 Hi-Torque Overhead Stirrer (2000rpm; 200,000 mPas)

Stirring Capacity (H20): Max. 100 Lit

Maximum Viscosity/Torque: 200,000 mPas/700 Ncm

Speed Range: 50~2000rpm

Motor: Hi-Capacity Brushless DC-motor, Gear(2.6:1/14:1)

Safety Device: Over Heat & Current Protector for Motor

Motor Rating(Input/Output): 200/180W

Controller: Digital PID Control

Chuck Grip Capa. Φmm: dia Φ 6~10mm Shafts, Flex-Coupling (Φ 6~16mm)

Permissible Temp. & Humidity: 0~40°C, 80%

Material: Aluminum Die Casting

Dimension (w x d x h): 84 x 205 x 275 mm

Weight: 3.5 kg

Power Consumption: 250W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz
