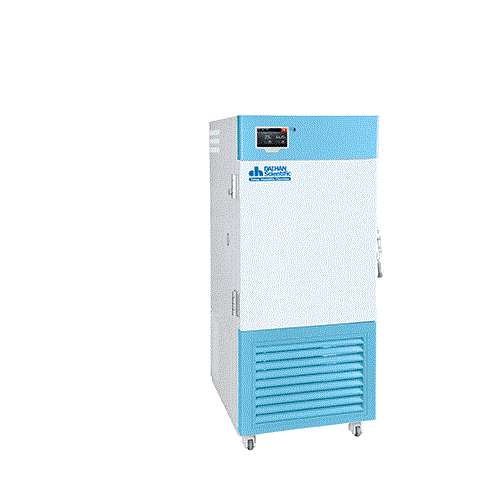

DaiHan ThermoStable™ STH-E155 General Purpose SMART Temp/Humidity Chamber (-20°C~80°C, 155L)

Capacity: 155 L

Temp. Range: -20°C~80°C, PT100 Sensor

Temp. Accuracy: ±0.3°C

Humidity Range: 30%~95% RH

Humidity Accuracy: ±2%

Dimension (w x d x h):

+ Interior (mm): 505 x 505 x 610

+ Exterior (mm): 745 x 920 x 1645

Heater:

+ for Temp. : 1.5 kW

+ for Humi. : 2.0 kW

Compressor: 7/8 HP

Material:

+ Internal: Stainless-steel (#304)

+ External: Powder coated steel

Shelf (included): 3 Perforted Stainless-steel Shelf, Adjustable Position

Safety Device: Hi-Low Temp. Protector, Over Current & Leakage Breaker, Water Level Sensor

Packing Dimension (w x d xh) (cm) : 99 x 112 x 185

Net & Gross Weight, kg: 290kg/ 355 kg

Power Consumption: 4.4 kW

Electric Reqts: 1 Phase AC 230V , 50/60Hz

Spare Perforated Stainless-steel Shelf

DH.WTHE11155 1) Perforated Shelf, "THSE1155", for 155 Lit, 474 x 465mm

DH.WTHE11305 1) Perforated Shelf, "THSE1305", for 305 Lit, 589 x 580mmDH.WTHE11420 1) Perforated Shelf, "THSE1510", for 420 Lit, 719 x 620mm

DH.WTHE11800 1) Perforated Shelf, "THSE1800", for 800 Lit, 760 x 969mm

Datasheet
