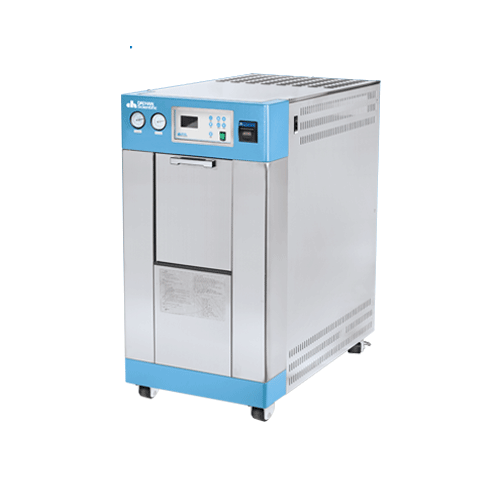

DaiHan Ste90.F Front Door Steam Sterilizer (90L; 110 ~ 135℃)

- Capacity: 90 Lit

- Sterilizing: Cycle-type Class-B Cycle by EN-285 Standard

- Temp. Range: 110~135℃

- Pressure & Gauge: 0.4 ~ 2.3 bar, Built-in Analog & Digital Pressure Gauge

- Timer & Alarm: 60 min, Error Status & Timer-end Alarm

- Display: Digital LCD with Back-Light Function & LED Lamp (Working Process)

- Controller: Microprocessor Digital PID Control System (Full Automatic)

- Programmable Function: Pre-set 6 Programs (Customizable 5- & Fixed Bowie Dick 1- Program)

- Door-type: Manual Vertical Sliding Door, Automatic Door Locking System

- Chamber: Reinforced and Electro Polished Square Chamber with Double Jacket

- Tray (Included): 2 Stainless-steel Perforated Tray

- Safety Circuit: Over-Temp / -Pressure / -Current protection, Sensor Error Detection

- Material: Interior : Stainless-steel 304 Pressure Vessel, Exterior : Stainless-steel

- Dimension (w× d× h):

Interior 338×712×h378 mm

Exterior 625×990×h1300 mm

- Weight: 280kg

- Power Consumption 6.0 kW

- Electric Reqts. 220 V 50 / 60 Hz, 1 Phase.
