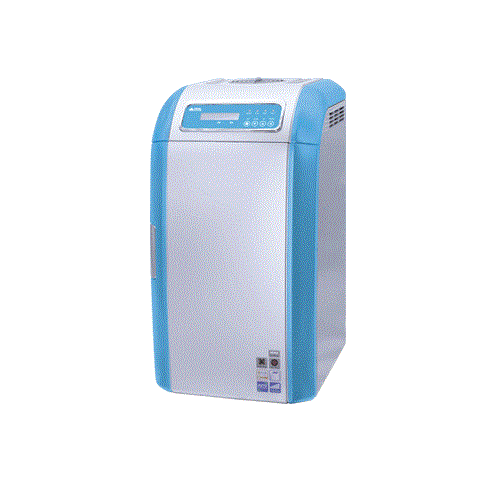

DaiHan ThermoStable™ IR-20 Mini-Low Temperature Incubator (45℃, 20L)

Capacity(Lit): 20 Lit Working Chamber

Temp. Range: 4~45°C, 0.1°C; Digital PID Control

Temp. Accuracy: ±0.2°C (No Load)

Temp. Uniformity: ±0.2°C (at 37°C)

CO2 Range & Control: 0~10%, 0.1%; NDIR CO2 Sensor

Cooling/Heating: Peltier Element Module

Air Flow-type: Gravity Flow Circulation

1 Shelf and 3 Location Brackets: 1 Perforated ABS Shelf(w210 x d230 x Thick 8mm) included Adjustable Shelf Location Height of 3-Stage

Condensate Drain: Natural Evaporation

Incubator Material: "ABS-Resin" Chamber & Housing, Except Shaking Base

Incubator Dimension:

+ Interior: w213 x d265 x h360mm Chamber Only

+ Exterior: w280 x d330 x h510mm

Net Weight (kg): 7 kg

Power Consumption: 56

Electric Reqts: Free Voltage; 1 Phase, AC90-240V, 50/60 Hz

Spare Shelf:

DH.Inc0003 Perforated Shelf, ABS, 210 x 230mm

Optional Power Cord for Vehicles

DH.Inc0004 Cigarette lighter Power Supply Cord
