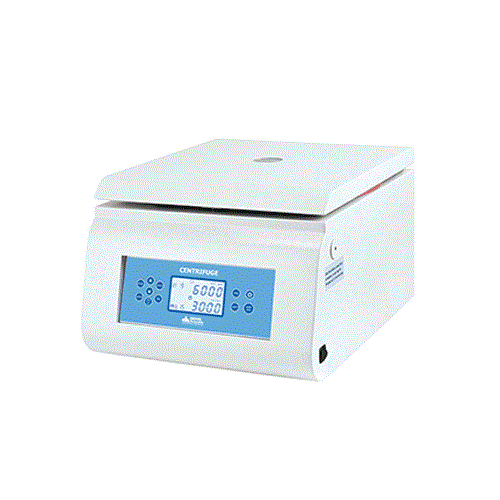

DaiHan Cef-D50.6 Multi-function Microprocessor Centrifuge (4000rpm)

Fixed Angle Rotor&Capa.

- Included (1) 6Hole ; 50ml Tubes

- Option (2) 12Hole ; (1.5-15)ml Tubes, (3) 24Hole ; (1.5~15)ml Tubes

Swing Rotor & Capa.: Option (4) SR1550 ; ⑤ 4 x1 Hole - 50ml, ⑥ 4x 3Hole -10-15ml, ⑦ 4 x4Hole : 5-7ml, ⑥+④ 4x3Hole : 1.5/2.0ml

Useful Tube size & Acceptance: (1)6 Tubes , 50ml

- When Option Fixed Angle Rotor (2) 12 Tubes ; 1.5~15ml (3)24 Tubes; 1.5~15ml

- When Option Swing Rotor; (4) SR1550 ⑤ 4 Tubes: 50ml, ⑥ 12 Tubes : 10-15ml ⑦16 Tubes : 5-7ml ⑥+④ 12 Tubes :1.5/2.0ml

Adapter and Size:

- Included ① 6ea x50ml Tubes Size ; id30.7 xL104mm

- Option:

+ When Option Fixed Angle Rotor:

② 12/24ea x 10-15ml Tubes, Size ; id17.5x L95mm

③ 12/24ea x 5-7ml Tubes, Size ; id13.5xL69mm

④ 12/24ea x 1.5/2ml Tubes Size ; id11xL42mm

+ When Option Swing Rotor:

⑤ 4 x 1Hole - 50ml Tubes

⑥ 4 x 3Hole- 10-15ml Tubes

⑦ 4 x 4Hole - 5-7ml Tubes

⑥+④ 4x 3Hole - 1.5/2.0ml Tubes

Speed Range (rpm) & RCF: 600~4000rpm & 2,325 xg (Swing Rotor ; 2,683xg)

Motor: Brushless DC Motor

Timer: 0~30min

Dimension & Weight: 390 x 505x 290mm, 19.8kg, Gross. 21.8kg

Electric Reqts.:AC 230V, 50/60Hz

Spare Rotor and Tube Adapters

DH.CefR5006 (1) 50ml 6Holes Angle Rotor "R5006" with 6ea x 50ml Tube Adapter PP "TA50", idΦ 30.7 x L104mm, for "Cef-50.6" & "Cef-D50.6"

DH.CefA050 ① 50ml Tube Adapter PP 'TA50", idΦ 30.7 x L104mm, Fit to Rotor "R5006", for Centrifuge "Cef50.6" & "Cef-D50.6"

DH.CefA015 ② 10-15ml Tube Adapter PP 'TA15", idΦ 17.5 x L98mm, for Centrifuge "Cef-6" & "Cef-8", and Rotor "R1512" & "R1524"

Optional Rotor and Tube Adapters

DH.CefR1512 (2) 10~15ml 12Holes Angle Rotor "R1512", with 12ea x 10/15ml Tube Adapter "TA15", idΦ 17.5 x L98mm, for Centrifuge "Cef-50.6" & "Cef-D50.6"

DH.CefR1524 (3) 10-15ml 24Holes Angle Rotor "R1524", with 24ea x 10/15ml Tube Adapter "TA15", idΦ 17.5 x L98mm, for Centrifuge "Cef-50.6" & "Cef-D50.6"

DH.CefSR1550 (4) Swing Rotor "SR1550", with Tube Adapter PP 1Hole x4ea x 50ml "TA5001" 3Hole x4ea x 1.5/2ml & 10~15ml"TA1503" and 4Hole x 4ea x 5-7ml "TA704", for Centrifuge "Cef-D50.6"

DH.CefA007 ③ 5-7ml Tube Adapter PP "TA7", idΦ 13.5 x L69mm, Fit to "TA15", Tube Adapter, for Centrifuge "Cef-6", "Cef-8", "Cef-50.6", and "Cef-D50.6"

DH.CefA002 ④ 1.5/2mlTube Adapter PP "TA2", idΦ 11 x L42mm, Fit to "TA15", "TA1503" Tube Adapter, for Centrifuge "Cef-6", "Cef-8", "Cef-50.6", and "Cef-D50.6"

DH.CefA5001 ⑤ 50ml Tube Adapter PP 'TA5001", Fit to Rotor "SR1550", for Centrifuge "Cef-D50.6"

DH.CefA1503 ⑥ 10-15ml 3Hole Tube Adapter PP 'TA1503", Fit to Rotor "SR1550", for Centrifuge "Cef-D50.6"

DH.CefA704 ⑦ 5-7ml 4Hole Tube Adapter PP "TA704", Fit to Rotor "SR1550", for Centrifuge "Cef-D50.6"
