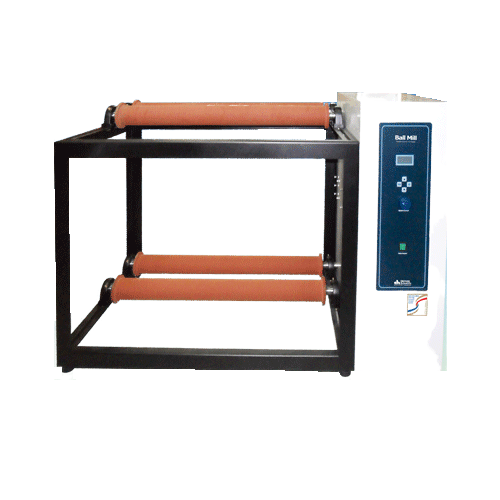

DaiHan BML-6 Programmable Ball Mill (50~600 rpm, ±5 rpm)

Capacity: 6 places, up to 6 pots

Motor: DC 100W Geared Motor (5: 1 ratio)

Maximum Load: 60 kg

Speed Range: 50~600 rpm

Speed Accuracy: ±5 rpm

Timer: 99hr 59min (Programmable)

Display: Digital LCD with Back-Light Function

Controller: Programmable Digital Feedback Controller with Jog-Shuttle Switch (Turn + Push)

Program Function: 10 steps, 6 programs

Safety Device: Over Load Protector for Motor

Dimension (w x d x h):

Roller (mm): 70 x 800

Extemal (mm): 1200 x 500 x 795

Packing Size (w x d x h)mm: 1300 x 620 x 1010

Gross Weight: 115 kg

Power Consumption: 100 W

Electric Reqts.: 1 Phase, AC 230 V, 50/60 Hz

Optional Soundproof Cabinet * Designed for Minimizing Noise, and Safety Work

DH.WBM505102: Soundproof Cabinet, "BMC2", for 2-places"BML-2", w1020x d570 x h1,120mm

DH.WBM505106: Soundproof Cabinet, "BMC6", for 6-places"BML-6", w1600 x d770 x h1400mm
