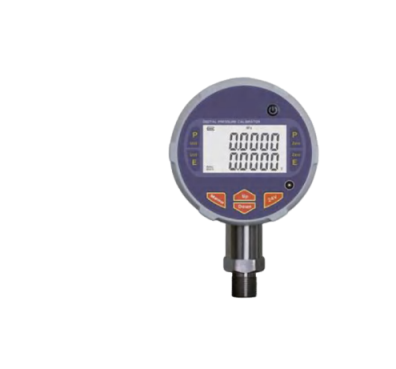

D-MEI DY-YL-1 Digital Pressure Calibrator (-100KPa ~ 0 ~ 250MPa)

Pressure Measurement

Gauge Pressure: -100KPa ~ 0 ~ 250MPa (each level)

Differential Pressure: -100KPa ~ 0 ~ 2.5MPa (each level)

Absolute Pressure: 0 ~ 110KPa (each level)

Main Pressure Range Measurement Accuracy: 0.1%F·S; 0.05%F·S; 0.02%F·S

Voltage Measurement

Measurement: Each range within 0-30V, the accuracy of the 0-5V range is ±(0.005% RD+0.005% FS), input impedance: >5MΩ.

Output: 0-15V, Accuracy: ±(0.005% RD+0.005% FS)

Output impedance:<1Ω

Working Environment: Temperature 5 ～ 50℃ , humidity <90%.

Size: Φ120mm*195mm

Weight: about 2kg.

Current Measurement

Measurement: 0 ～ 30mA, accuracy: ±(0.005% RD+0.005% FS), input impedance: 5Ω (plus fuse resistance).

Output: 0-30mA

Accuracy: ±(0.005% RD+0.005%FS).

Power Supply:

The rechargeable battery inside the machine is 9V, power consumption: <0.6W.

External power supply: 220V, 50Hz.
