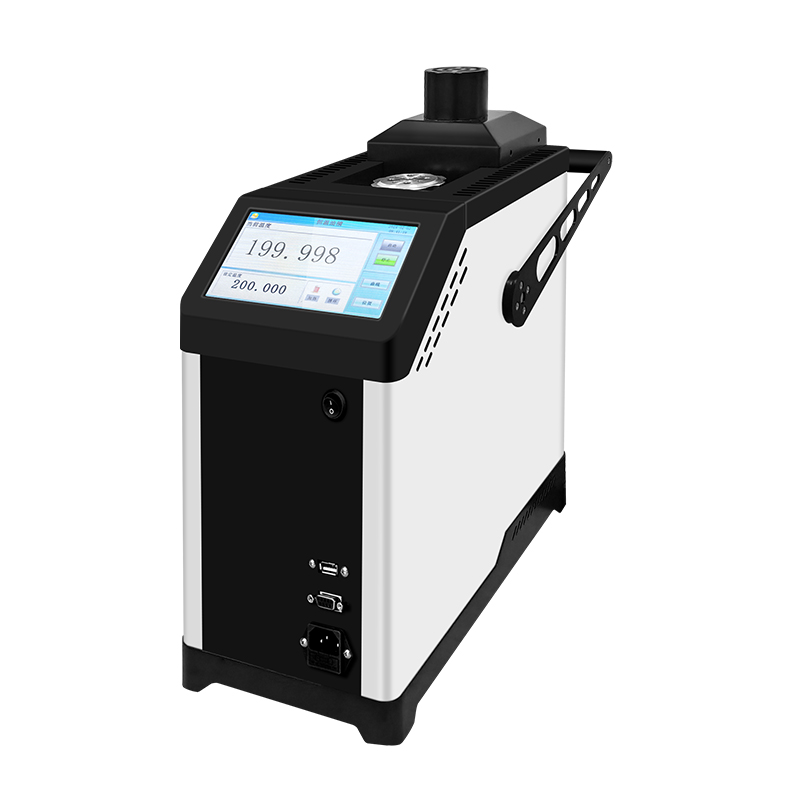

D-MEI DY-HTR300M Ultra-portable Intelligent Thermostatic Bath (70℃ -300℃, 400W)

Screen Size: 4.3-inch Touch Screen Operation

Temperature (℃): 70℃ -300℃

Temperature Resolution: 0.001℃

Temperature Fluctuation (℃ /10min): ≤ ±0.01℃（@70~100℃), ≤ ±0.015℃（@200℃), ≤ ±0.02℃（@300℃)

Temperature Uniformity (℃): ≤ 0.02℃

Working Area Size(mm): Φ60×300

Tank Volume（L): 2L

Working Medium: 201-50CS Methyl Dilicone Oil suitable for 70℃～ 300℃

Environment(℃ ): 15~35℃

Total Power(KW): 400W

Power Supply: 220V 50HZ

Size(L×W×H): 380×180×480(mm)

Inner Shell: Material Stainless Steel Hairline Board

Sensor: Four-wire PT100 Class A Platinum Resistor

Weight: 15Kg
