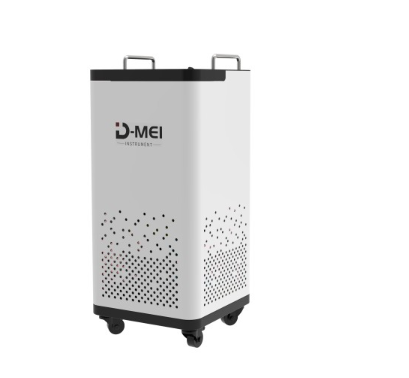

D-MEI DY-HTEB Special Blackbody Furnace for Standard Temperature Gun (20℃～ 50℃)

Temperature Range: 20℃～ 50℃

Temperature Resolution: 0.001℃

Operating Method: Touch Screen

Temperature Control: PID Automatic Control

Forehead Thermometer Blackbody Cavity Test Aperture: Φ45mm

Ear Thermometer Blackbody Cavity Test Aperture: Φ10mm

Blackbody Cavity Emissivity: ≥ 0.999

Temperature stability of Liquid Tank Working Area: ±0.02℃ /10min

Temperature Uniformity of Liquid Tank Working Area: ±0.02

Liquid Area Volume: 12L

Power Supply: 220V AC 50HZ

Power: 1000W

Weight: 30Kg

New Structure: Thermostat + Forehead Thermometer Blackbody Cavity + Ear Thermometer Blackbody Cavity

Default Display: Chinese /English Display Full Color LCD ℃

Language Any required language can be generated according to customer

requirements

Environment: 22±3℃ 15%RH ～ 65%RH

Optional: Second-class standard platinum resistor, high-precision digital multimeter

Execution Regulations: JJG 1164-2019 Infrared Ear Thermometer Calibration Regulations

Size(L×W×H): 870mm×350mm×350mm
