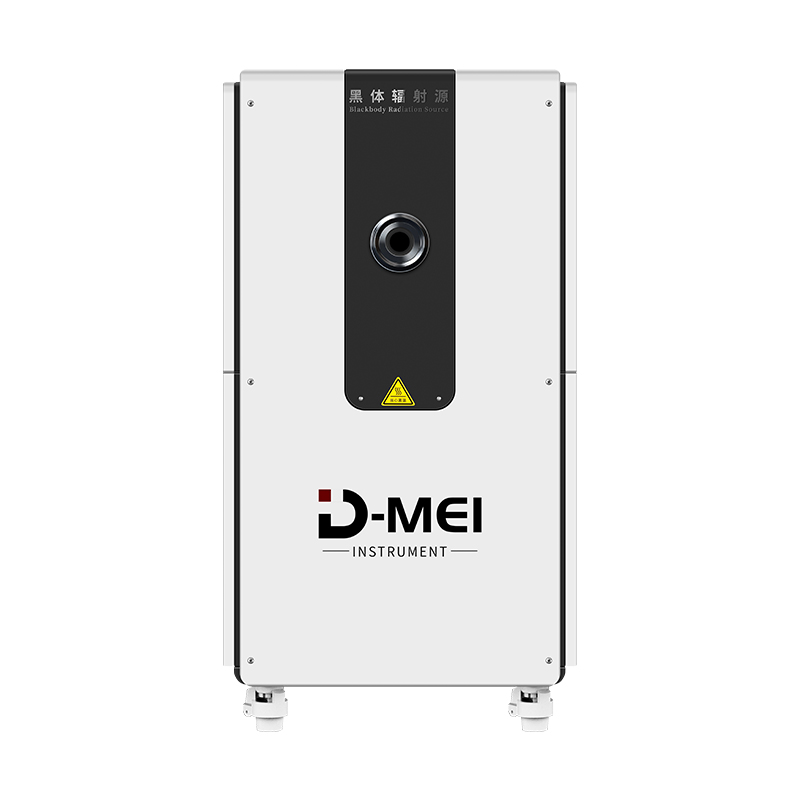

D-MEI DY-HT4 Blackbody Furnace (700℃-1700℃)

Operating temperature: 700℃～ 1600℃ / 700 ～ 1700℃ .

Operation mode: touch screen operation

Temperature resolution: 0.1℃

Temperature control: PID automatic control

Cavity diameter: φ40mm

Cavity depth: 400mm

Cavity emissivity: ≥ 0.995

Temperature stability: no greater than 0.1℃ and 0.1%t, whichever is greater, t is the radiation source temperature (within 10 minutes)

Temperature uniformity: no greater than 0.15℃ or 0.15%t, whichever is greater, t is the radiation source temperature

Working power supply: 220V AC 50/60HZ

Power: < 7700W

Volume (L*W*H)): 895mmx650mmx1305mm

Weight: 120Kg

Communication method: supports 232 communication (Optional)
