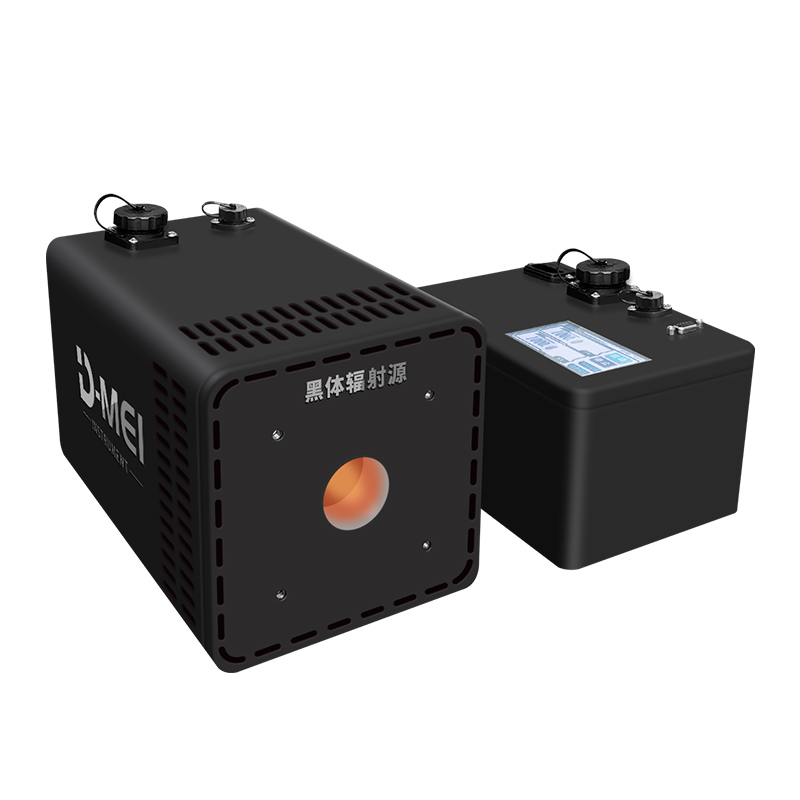

D-MEI DY-HT3F-D Split Portable High Temperature Short Cavity Blackbody Furnace (300℃-1000℃)

Working temperature: 300℃-1000℃

Temperature resolution: 0.1℃

Emissivity: 0.99

Display screen: 4.3 inches (Special requirements can be noted)

Temperature fluctuation: <1℃ (after temperature stabilization)

Temperature uniformity: No more than ± (0.2℃ and 0.2%t, whichever is greater, t is the radiation source temperature)

Cavity diameter: Ф40mm

Cavity depth: 100mm

Blackbody furnace size: No more than 165mm×165mm×270mm

Blackbody furnace weight: ＜6kg

Controller size: ≤227mm×224mm×127mm

Blackbody complete set (including controller): ≤10KG

Power supply: 220V AC 50Hz

Communication method: Support 232 communication (if 485 communication is required, specific communication is required)
