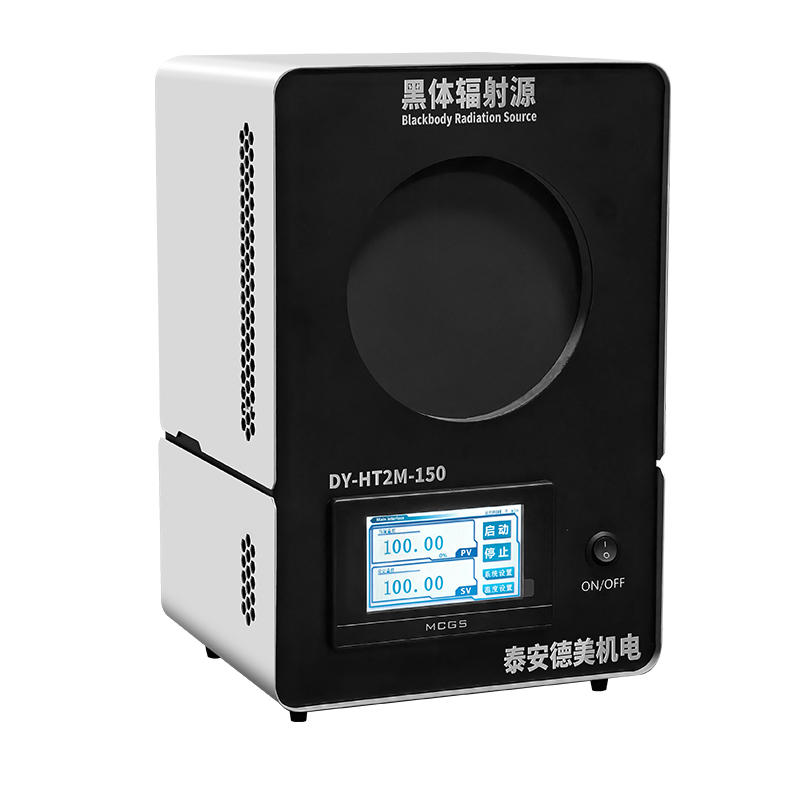

D-MEI DY-HT2M-150 Non-point Source Blackbody Furnace (RT+5℃-500℃)

Temperature Range: RT+5℃~500℃

Control Mode: Touch Screen

Temperature Resolution: 0.1℃/0.01℃

Temperature Control: PID Automatic Control

Radiating Surface: φ150mm

Emissivity: ≥0.95

Temperature Stability

Not greater than 0.15℃ and 0.15%T(bigger one in two)

T is the radiation source temperature（Within 10min）

Temperature Uniformity: ±(0.2~0.6)℃ （2/3 center area）

Power Supply: 220V AC 50/60Hz

Wire Line Diameter: ≥1.5㎡

Power: 800W

Dimension(L×W×H): 240mm×215mm×370mm

Weight: 8.0Kg

Environment:22℃±3℃;15%-65%RH;

Optional Features

Support 232 communication

Adjustable emissivity（Adjustable between 0.95~0.99）
