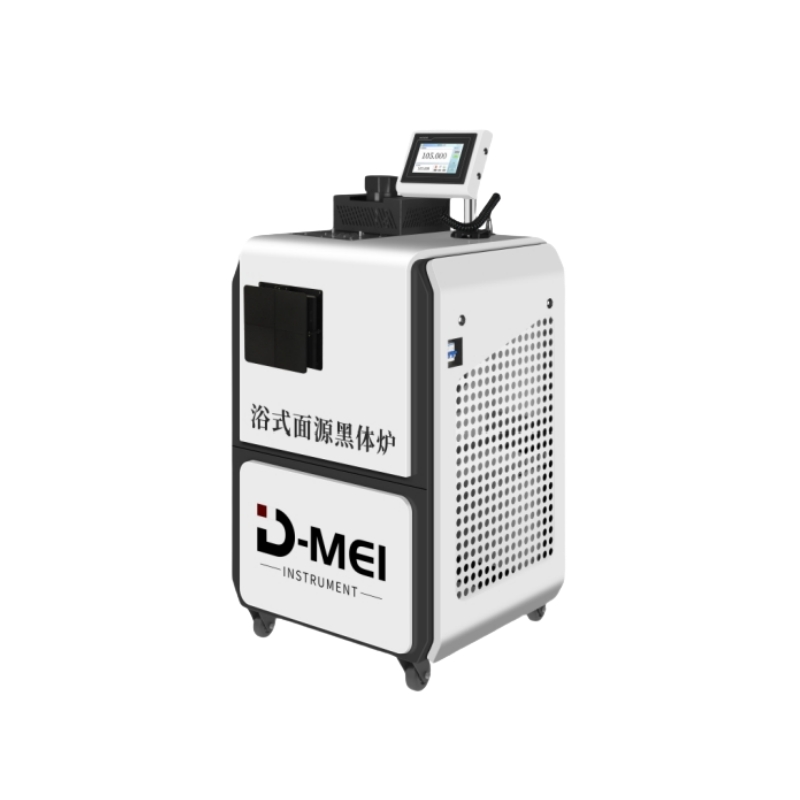

D-MEI DY-HT1M-Y Low-Temperature Bath Surface Source Blackbody Radiation Source (-40°C~80°C)

Temperature Range: -40℃~80℃

Control Mode: Touch Screen

Touch Screen: 0.001℃

Temperature Control: PID Automatic Control

Emissivity: ≥0.995

Temperature Stability: No more than ±0.1℃ (constant temperature equipment part)

Temperature Uniformity: ±(0.1-0.2)℃@50℃ (within 2/3 center area)

Radiating surface diameter: 100mm*100mm/200mm*200m （Customizable）

Cavity depth: 280mm (customizable)

Equipment volume: 18L

Working medium

At low temperature: anhydrous ethanol

At high temperature (above 30°C): soft water or special coolant

Power supply: 220V AC 50/60Hz

Power: 3KW

Dimensions: 790mm×740mm×1420mm

Working environment: 22℃±3℃ 15%RH-65%RH

Optional function: Adjustable emissivity (Adjustable between 0.95~0.99)
