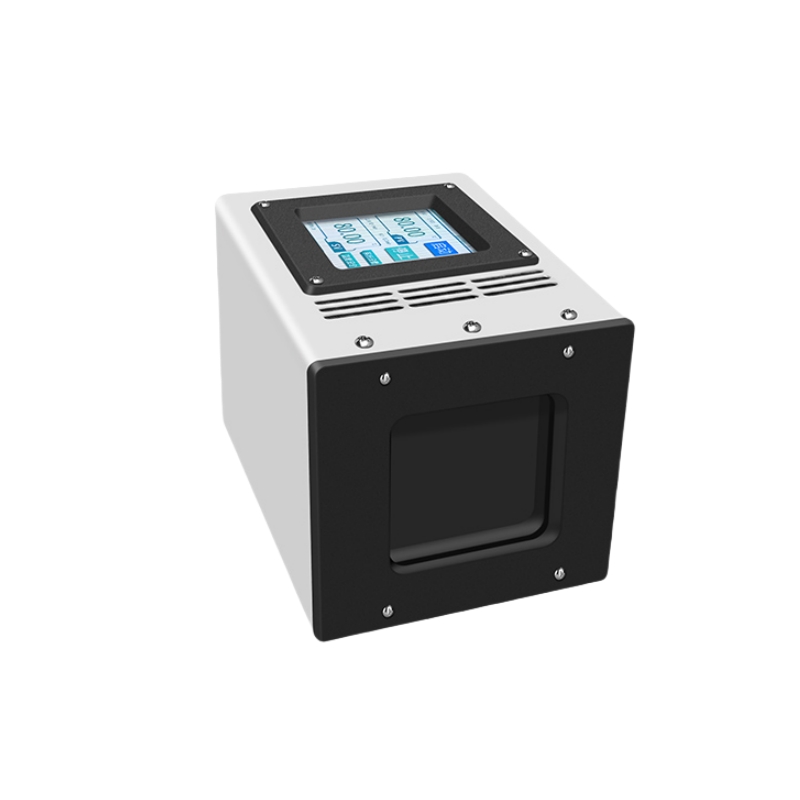

D-MEI DY-HT1M-70 Small size high precision surface source blackbody furnace (-10℃-100℃)

Temperature Range: -10℃~100℃

Control Mode: 4-inch touch screen operation

Temperature Resolution: 0.1℃/0.01℃

Temperature Control: PID Automatic Control

Radiating Surface: 70mm ×70mm

Cavity depth: 10mm

Emissivity: ≥0.95

Temperature Stability: ≤0.15%t℃/10min

Temperature Uniformity: Not more than ±0.2℃ and 0.2%t, t is the radiation source temperature (within 2/3 center area)

Power Supply: 220V AC 50/60Hz

Wire Line Diameter: ≥1.5㎡

Power: 350W

Dimension(L×W×H): 134mm×134mm×185mm

Weight: ≤2Kg

Environment: 22±3℃ 15%RH-65%RH; max height 2000 meters

Communication method: Special remarks if communication is required

Communication method: Support 485 Communications

Remark: Low-temperature surface source blackbody furnace, when the set temperature is lower than the ambient temperature, in order to effectively avoid the problem of frost on the radiation surface of the blackbody furnace, the blackbody furnace is equipped with an anti-frost cover, and the user needs to prepare nitrogen, nitrogen pressure reducing valve and other related supporting equipment.
