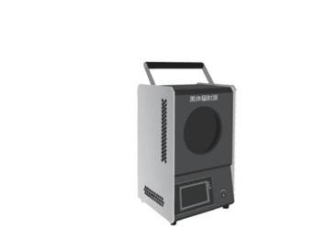

D-MEI DY-HT150M Large Surface Source Blackbody Furnace (RT+5℃ to 500℃)

Working Temperature: RT+5℃ to 500℃

Operating Method: Touch Screen

Temperature Resolution: 0.1℃

Temperature Control: PID Automatic Control

Radiating Surface: Φ150mm/150mm×150mm

Emissivity: ≥ 0.95

Temperature Stability: No Greater Than 0.15℃ and 0.15%t, whichever is greater, t is the radiation source temperature（in 10min)

Temperature Uniformity: Not greater than 0.2℃ or 0.2%t, whichever is greater, t is the radiation source temperature (within 2/3 of the central area)

Power Source: 220V AC 50HZ

Wire Diameter: ≥ 1.5Square

Power: 800W

Size(L×W×H): 315mm×200mm×340mm

Weight: 8Kg

Environment: 22±3℃ 15%RH ～ 65%RH
