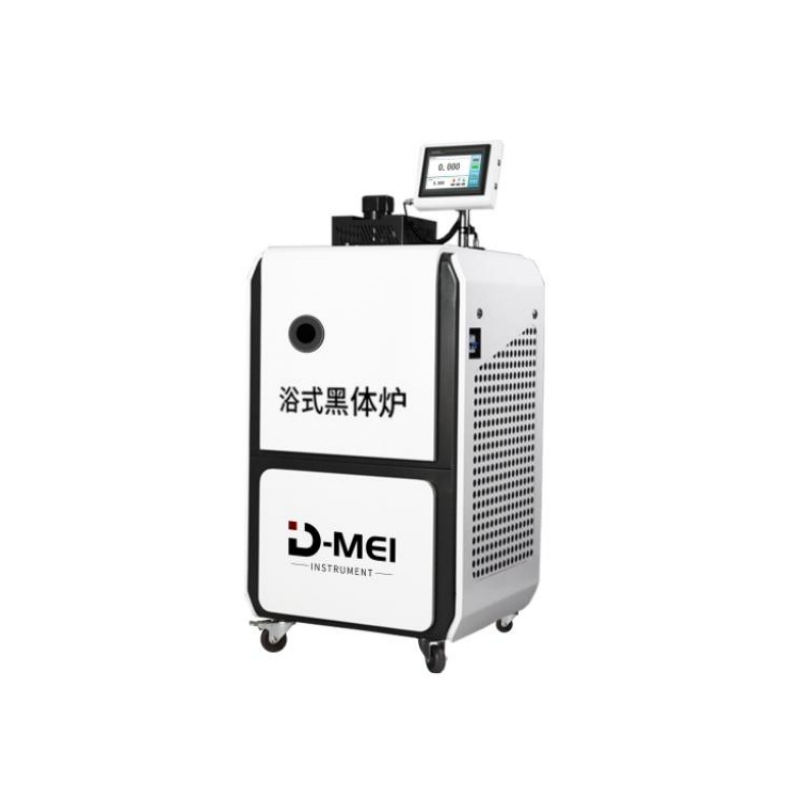

D-MEI DY-HT1-Y Low Temperature Bath Black Body Furnace (-80℃ to 80℃)

Operating Temperature Range: -80℃ to 80℃

Temperature Resolution: 0.001℃

Operating Mode: 7 inch touch screen operation

Temperature Control: PID Automatic Control

Emissivity: ≥ 0.995

Temperature Stability: Not greater than ±0.05℃ (Thermostat Part)

Temperature Uniformity: Not greater than ±0.15℃

Radiant Surface: Φ50mm

Liquid Tank Volume: 18L

Working Medium

At low temperature: absolute ethanol

At high temperatures (above 30° C): soft water or special coolant

Use ambient temperature: 15℃ to 25℃

Total Power: 2KW

Power Supply: 220V/50HZ AC

Dimension: 790mm*740mm*1420mm
